Tipping skips

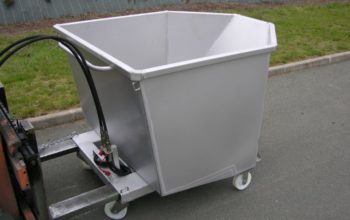

Viticulture tipping skip reduced-height
GS
Viti
Viti
GS
Viti
Viti
Perfect for under presses.
For all applications with reduced height (shear, massicot, filter presses).
Prehensible by forks of forklift truck.See the colorsAsk for a quote
For all applications with reduced height (shear, massicot, filter presses).
Prehensible by forks of forklift truck.See the colorsAsk for a quote
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
capacity | load | Release | fork | weight | PAINTED | ||||||
litres | kg | A | B | C | I | D | F | sleeves ins. | kg | REF. | |
590 | 1200 | A + M | 1280 | 1100 | 1585 | 1500 | 600 | 800 | 170 x 70 | 170 | GSP20421 |
670 | 1200 | M | 1290 | 1100 | 2085 | 2000 | 450 | 800 | 170 x 70 | 196 | GSP21421 |
785 | 1200 | M | 1705 | 1500 | 2285 | 2200 | 360 | 800 | 170 x 70 | 280 | GSP22421 |
835 | 1200 | M | 1290 | 1100 | 2585 | 2500 | 450 | 800 | 170 x 70 | 235 | GSP23421 |
1075 | 1200 | M | 1705 | 1500 | 3085 | 3000 | 360 | 800 | 170 x 70 | 345 | GSP24421 |
1095 | 1200 | A + M | 1680 | 1500 | 2085 | 2000 | 600 | 800 | 170 x 70 | 275 | GSP25421 |
1370 | 1200 | A + M | 1680 | 1500 | 2585 | 2500 | 600 | 800 | 170 x 70 | 316 | GSP26421 |
Dimensions in mm for basic model (for guidance only). Loaded skip center of gravity at end of forks. |
Complete the specific form :
Product features
- Capacity : 590 to 1370 litres
- Articulation joints have extra-large bearings and grease nipples
- Safety latch for transport (disengage before tipping)
- Automatically unlocks and tips on contact (A).
Lever for manual tipping (M).
See table for details - Rubber bumpers and springs dampen end of tipping process
- Safety chain included
- Fork sleeves aperture and spacing (F) can be modified on request
- Ø125 mm alu/polyurethane castors.
360 and 450 mm-high skips have a drawbar.
600 mm-high skips have a handrail - For customised products, please fill in the customization form on page 17
- Available options include: pouring lip, grillewith drain and square threaded plug, and polyurethane food-safe paint
