Tipping skips

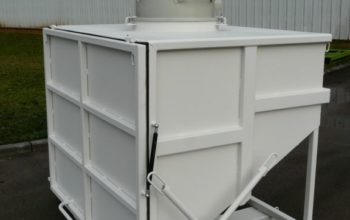

Vacuum-ready tipping skip
IA
IA
Waste collector for vacuum extractor.
Withstands up to 40 kPa.
Versatile connections.
Withstands up to 40 kPa.
Versatile connections.
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
| capacity | load | CASTORS | fork | weight | PAINTED | ||||||
| litres | kg | Ø | A | B | C | I | D | F | sleeves ins. | kg | REF. |
| 530 | 2000 | – | 1030 | 800 | 1200 | 1000 | 1025 | 740 | 170 x 70 | 240 | IAP05000 |
| 530 | 1800 | 160 | 1110 | 800 | 1200 | 1000 | 1155 | 580 | 170 x 70 | 252 | IAP05161 |
| 1000 | 2000 | – | 1340 | 1160 | 1200 | 1000 | 1370 | 740 | 170 x 70 | 337 | IAP10000 |
| 1000 | 1800 | 160 | 1420 | 1160 | 1200 | 1000 | 1485 | 620 | 170 x 70 | 349 | IAP10161 |
| 1500 | 2000 | – | 1340 | 1160 | 1710 | 1500 | 1370 | 740 | 170 x 70 | 400 | IAP15000 |
| 1500 | 1800 | 160 | 1420 | 1160 | 1710 | 1500 | 1485 | 740 | 170 x 70 | 412 | IAP15161 |
| Dimensions in mm for basic model (for guidance only). D : overall height not including ferrules | |||||||||||
Product features
- Capacity : 530, 1000 and 1500 litres
- Bin : 3 mm sheet metal with 4 mm non-deformable reinforcements
- Fixed welded leak proof lid with rimless ferrule
- Lever for manual door opening
- Safety chain included
- Pedestal-mounted models can be used with pallet trucks (between
fork sleeves) - Castor-mounted models (forward movement) have a handrail and 2 fixed + 2 pivoting Ø160 mm alu/polyurethane castors
- For customised products, please contact us
