Tipping skips

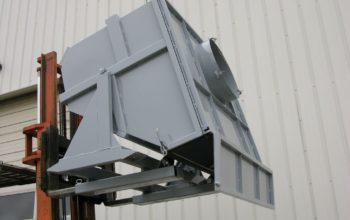

Vacuum – Ready Skip tipping version
AS
AS
Dust/chip collector for vacuum extractor.
Withstands up to 40 kPa.
Versatile connections.See the colorsAsk for a quote
Withstands up to 40 kPa.
Versatile connections.See the colorsAsk for a quote
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
CapacitY | LOAD | Castors | Movement | A | B | C | I | D | F | Fork sleeves | Weight | PAINTED |
Litres | kg | Ø | ins. | kg | REF. | |||||||
550 | 2000 | – | – | 1380 | 1200 | 1000 | 745 | 1325 | 740 | 170 x 70 | 305 | ASP05000 |
550 | 1800 | 160 P | Fwd. | 1380 | 1200 | 1000 | 745 | 1375 | 310 | 170 x 70 | 317 | ASP05161 |
750 | 2000 | – | – | 1380 | 1200 | 1250 | 1000 | 1225 | 740 | 170 x 70 | 328 | ASP08000 |
750 | 1800 | 160 P | Fwd. | 1380 | 1200 | 1250 | 1000 | 1375 | 600 | 170 x 70 | 340 | ASP08161 |
950 | 2500 | – | – | 1400 | 1220 | 1250 | 1000 | 1480 | 740 | 170 x 70 | 398 | ASP11000 |
950 | 2400 | 160 C | Fwd. | 1400 | 1220 | 1250 | 1000 | 1545 | 560 | 170 x 70 | 418 | ASP11162 |
1450 | 2800 | – | – | 1400 | 1220 | 1750 | 1500 | 1480 | 900 | 170 x 70 | 510 | ASP15000 |
1450 | 2400 | 160 C | Lat. | 1400 | 1220 | 1750 | 1500 | 1545 | 900 | 170 x 70 | 530 | ASP15162 |
1950 | 3000 | – | – | 1400 | 1220 | 2250 | 2000 | 1480 | 900 | 170 x 70 | 609 | ASP20000 |
1950 | 2400 | 160 C | Lat. | 1400 | 1220 | 2250 | 2000 | 1545 | 900 | 170 x 70 | 629 | ASP20162 |
Castors: P=Alu/polyurethane, C=Cast iron/polyurethane. D: Overall height not including ferrule. Lat.: Lateral movement – Fwd.: Forward movement
Dimensions in mm for basic model (for guidance only)
|
Product features
- Capacity : 550 to 1950 Litres
- Leakproof bin : 3 mm sheet metal with 4 mm non-deformable reinforcements
- Non-deformable bearing joints have grease nipples
- Safety latch for transport (disengage before tipping)
- Lever for manual tipping
- For specific connections, please contact us
- Fork sleeves can be modified on request.
Aperture : 170 x 70 mm.
Spacing : see F in table - Safety chain included
- Pedestal-mounted models can be used with pallet trucks (between fork sleeves)
- Castor-mounted models have 2 fixed +
2 pivoting Ø160 mm castors and a handrail
