Tipping skips
Tipping skip polyethylene
GM
GM
Corrosion proof.
Ideal for liquids or wet products.
Painted, galvanized or stainless steel chassis.See the colorsAsk for a quote
Ideal for liquids or wet products.
Painted, galvanized or stainless steel chassis.See the colorsAsk for a quote
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
capacity | load | castors | SKIP | weight | PAINTED CHASSIS | ||||||||
litres | kg | Ø | COLOR | A | B | C | I | D | E | F | kg | REF. | |
635 | 1000 | – | red | 1510 | 1200 | 1200 | 1080 | 1035 | 945 | 560 | 150 | GMP03000 | |
635 | 1000 | 160 | red | 1510 | 1200 | 1200 | 1080 | 1120 | 1030 | 560 | 162 | GMP03161 | |
635 | 1000 | – | blue | 1510 | 1200 | 1200 | 1080 | 1035 | 945 | 560 | 150 | GMP05000 | |
635 | 1000 | 160 | blue | 1510 | 1200 | 1200 | 1080 | 1120 | 1030 | 560 | 162 | GMP05161 | |
635 | 1000 | – | green | 1510 | 1200 | 1200 | 1080 | 1035 | 945 | 560 | 150 | GMP06000 | |
635 | 1000 | 160 | green | 1510 | 1200 | 1200 | 1080 | 1120 | 1030 | 560 | 162 | GMP06161 | |
Dimensions in mm for basic model (for guidance only). |
Product features
- Load capacity : 1000 kg
- Robust, double-walled, PE skip thickness 8 mm

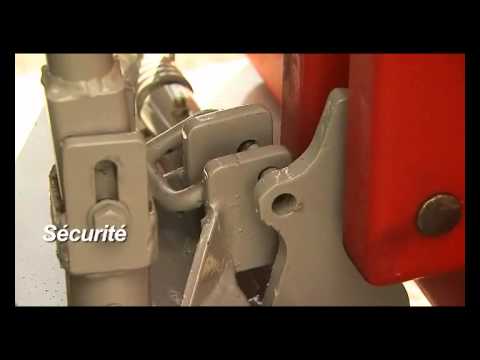

- Safety tipping lock prevents unintended use
- Tipping starts automatically on contact and manually by pulling the lever
- Skip is tipped by tilting the forklift mast forward
- Automatically returns to locked position when tilting mast backwards
- Fork sleeves : Aperture : 170 x 70 mm. Spacing (F) : 560 mm
- Pedestal mounted models (no use of pallet truck)
- Castor-mounted models have 2 fixed and 2 twinned castors, Ø160 aluminium polyurethane with steering bar – front movement
- Options: mounting onto nylon, treaded or steel wheels, attachment of coupling bar
