Tipping skips

Tipping skip multi-use

GIE
GIE_1


Capacities
and dimensions


Product
features


Download file
product

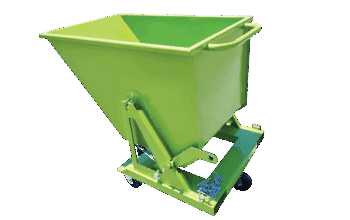

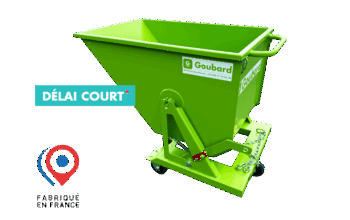

GIE
Versatile and maneuverable.
Front-loading lip.
Automatic release.See the colors
See more photos
Ask for a quote
Capacities and dimensions
ISO_GIE_EN
Glossary :

A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
capacity load CASTORS movement
Fork sleeves
 weight PAINTED
litres kg Ø   A B C I D E F APERTURE kg REF.
70 series – Bin height 700 mm
480 1500 – – 1220 1140 970 750 1015 835 420 165 x 55 140 IEP05000
480 1200 150 Fwd 1295 1140 1030 750 1130 945 420 165 x 55 150 IEP05151
640 1500 –  – 1220 1140 1220 1000 1015 835 730 165 x 55 158 IEP06000
640 1200 150 Fwd 1295 1140 1280 1000 1130 945 670 165 x 55 168 IEP06151
780 1500 –  – 1220 1140 1475 1250 1015 835 730 165 x 55 175 IEP08000
780 1200 150 Fwd. 1295 1140 1535 1250 1130 945 730 165 x 55 185 IEP08151
960 1800 –  – 1220 1140 1720 1500 1015 835 730 165 x 55 193 IEP09000
960 1800 160 Lat. 1220 1140 1895 1500 1130 945 730 165 x 55 205 IEP09161
100 series – Bin height 1000 mm
960 1800 – – 1300 1220 1240 1000 1280 1020 740 170 x 70 218 IEP10000
960 1800 160 Fwd. 1345 1220 1295 1000 1405 1145 660 170 x 70 230 IEP10161
1440 1800 – – 1300 1220 1740 1500 1280 1020 900 170 x 70 260 IEP15000
1440 1800 160 Lat. 1315 1220 1890 1500 1410 1145 900 170 x 70 270 IEP15161
1920 1800 –  – 1300 1220 2240 2000 1300 1040 900 170 x 70 308 IEP20000
1920 1800 160 Lat. 1315 1220 2390 2000 1425 1165 900 170 x 70 320 IEP20161
120 series – Bin height 1200 mm
1250 1800 –  – 1475 1325 1250 1000 1525 1180 740 170 x 70 270 IEP12000
1250 1800 160 Fwd. 1490 1325 1290 1000 1645 1300 660 170 x 70 280 IEP12161
1870 1800 –  – 1475 1325 1750 1500 1525 1180 900 170 x 70 318 IEP18000
1870 1800 160 Lat. 1490 1325 1910 1500 1645 1300 900 170 x 70 330 IEP18161
2500 1800 –  – 1475 1325 2250 2000 1525 1180 900 170 x 70 368 IEP25000
2500 1800 160 Lat. 1490 1325 2410 2000 1645 1300 900 170 x 70 380 IEP25161
Dimensions in mm for basic model (for guidance only). Lat.: Lateral movement – Fwd.: Forward movement.
Can not find the right model for you? We adapt!
Product features
  • Capacity : 480 to 2500 litres
  • Bin : 3 and 4 mm sheet metal
  • Rigid tubular chassis : 4 and 5 mm sheet metal
  • Sealed cross-bars (improved interior pipe corrosion resistance)
  • Automatically unlocks and tips on contact (anti-slip device). Lever for manual tipping
  • Fork sleeves aperture and spacing (F) can be modified on request
  • Pedestal-mounted models (except the 480 L model) can be used with pallet trucks (between fork sleeves)
  • Castor-mounted models have 2 fixed + 2 pivoting alu/polyurethane castors and a handrail
  • Safety chain included
  • Options on request
