ACCESSORIES

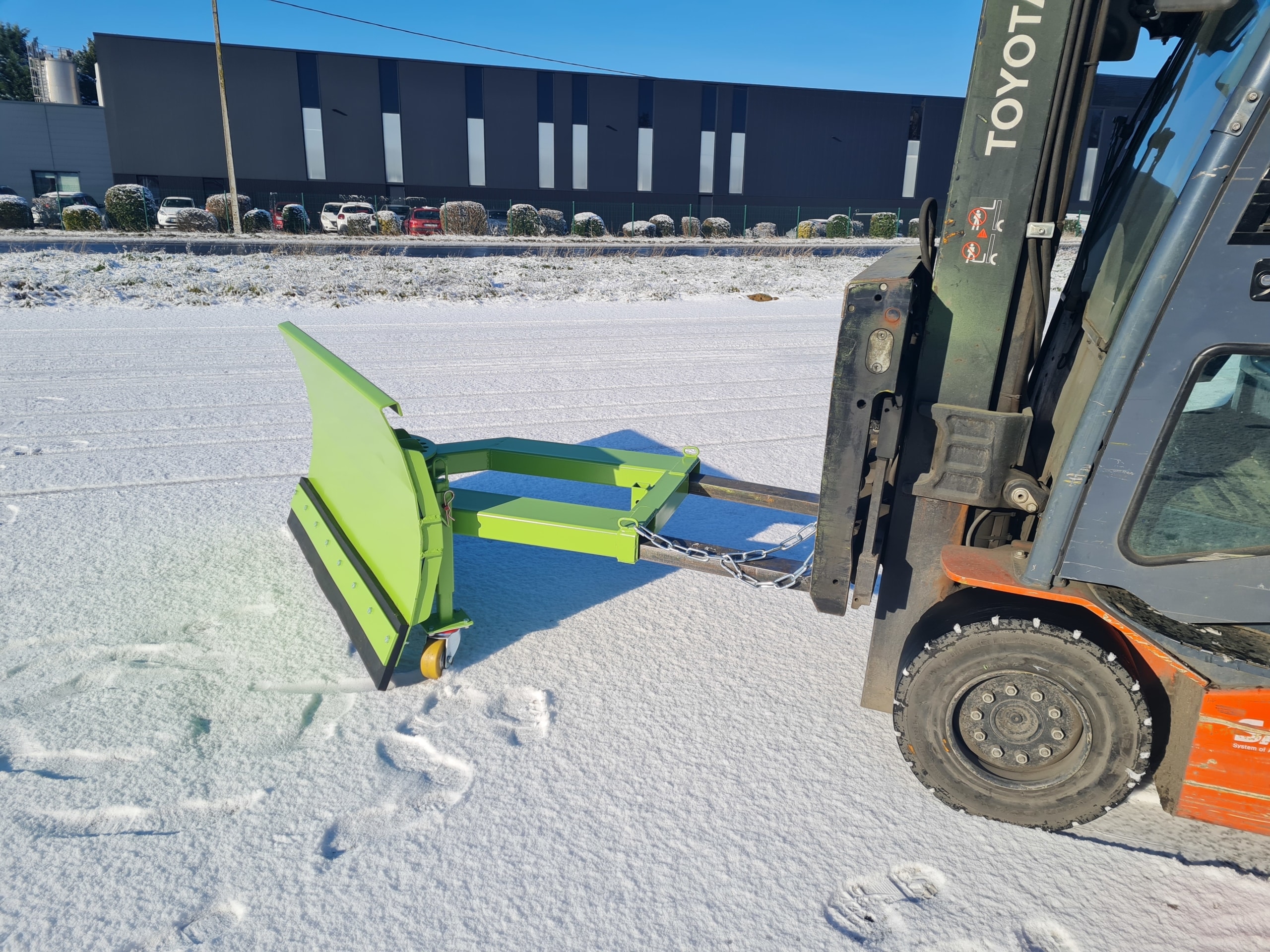

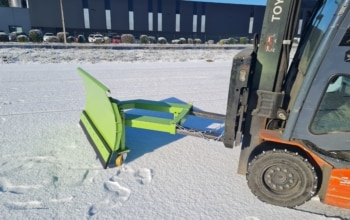

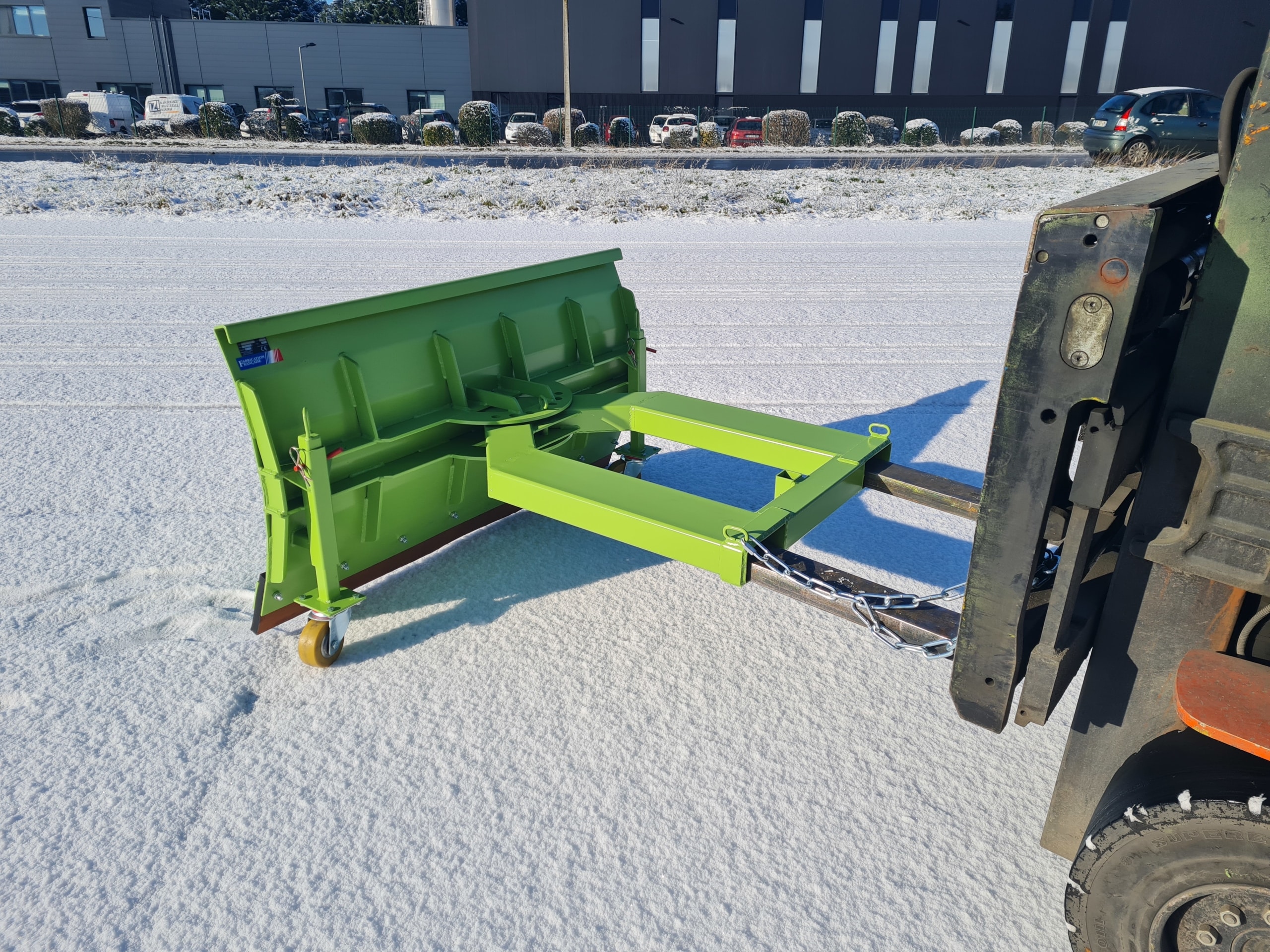

Snow-plow blade

CN
CN
Metal or rubber blade interchangeable.

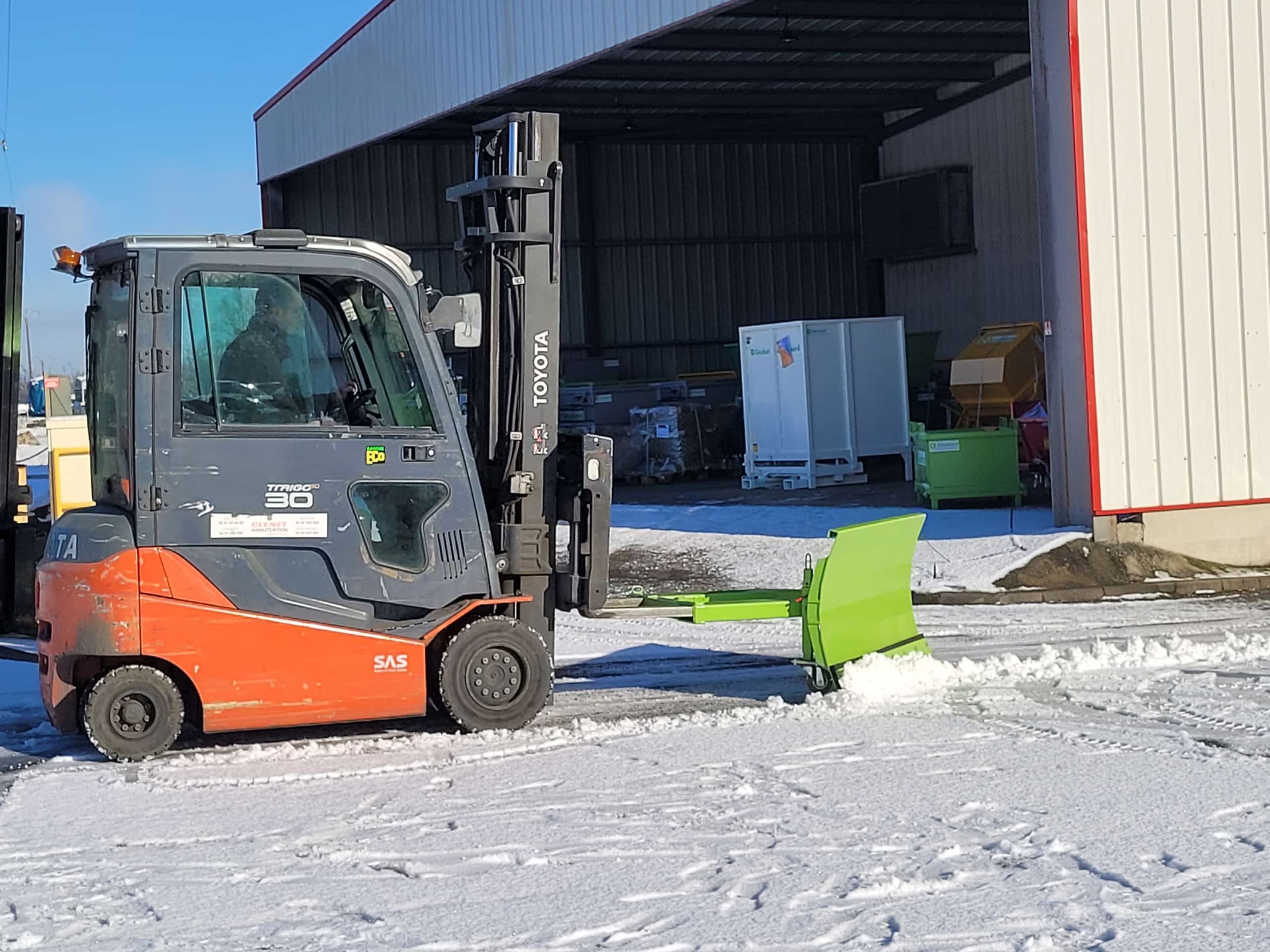

Easy to use with forklift.
Quick and efficient snow clearance.
See the colorsAsk for a quote
Capacities and dimensions
CN
Glossary :

A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing



LENGTH blade mm (C) CASTORS Ø A F FORK sleeves
ins.
WEIGHT kg steel blade REF. rubber BLADE REF.
1500 1270 600 170 x 70 180 CNP15000
1500 125 1270 600 170 x 70 190 CNP15121 CNP16121
2000 1270 600 170 x 70 215 CNP20000
2000 125 1270 600 170 x 70 225 CNP20121 CNP21121
2500 1270 600 170 x 70 250 CNP25000
2500 125 1270 600 170 x 70 260 CP25121 CNP26121
Dimensions in mm for basic model (for guidance only).
Can not find the right model for you? We adapt!
Product features

2 MODELS :

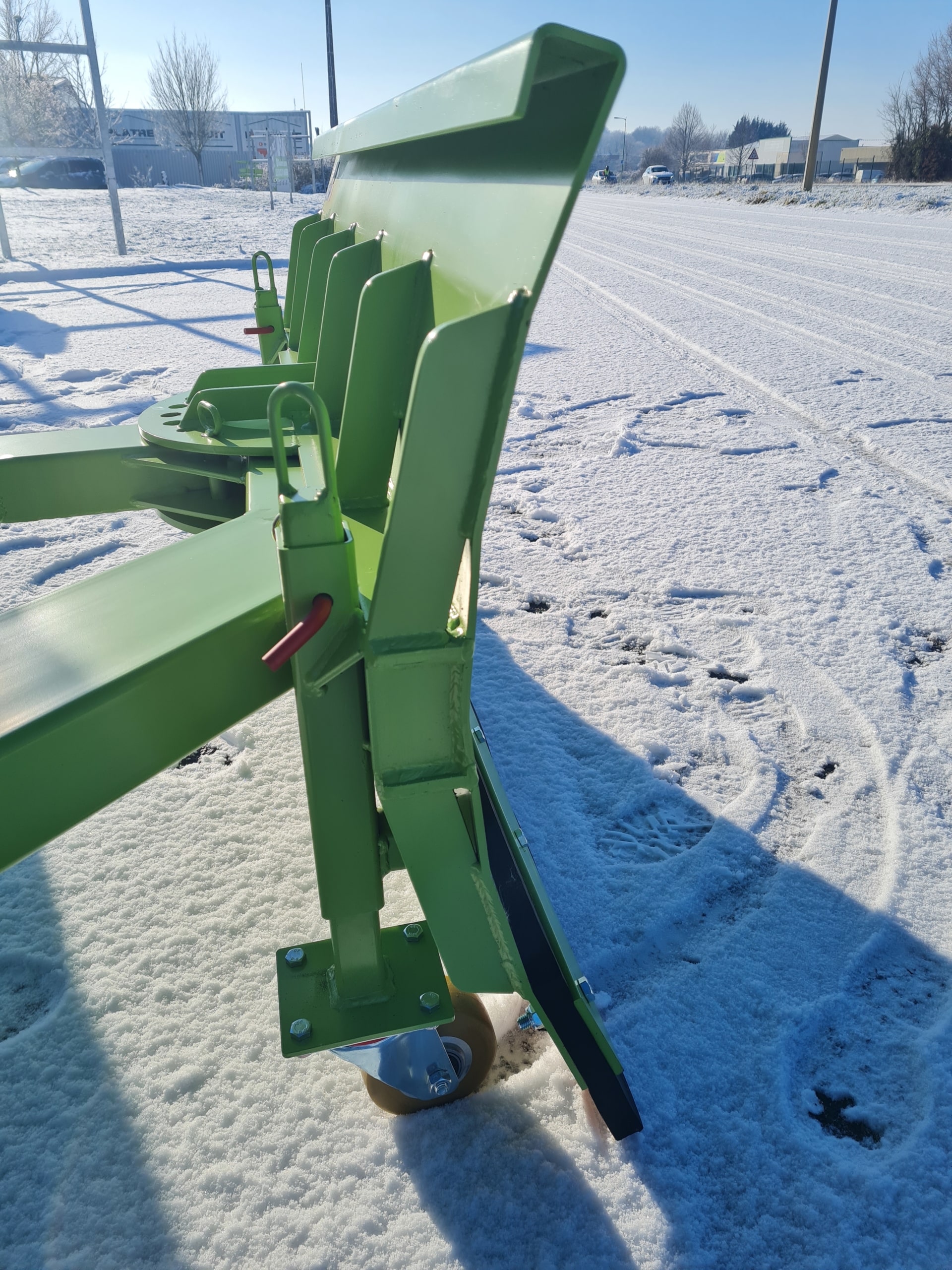

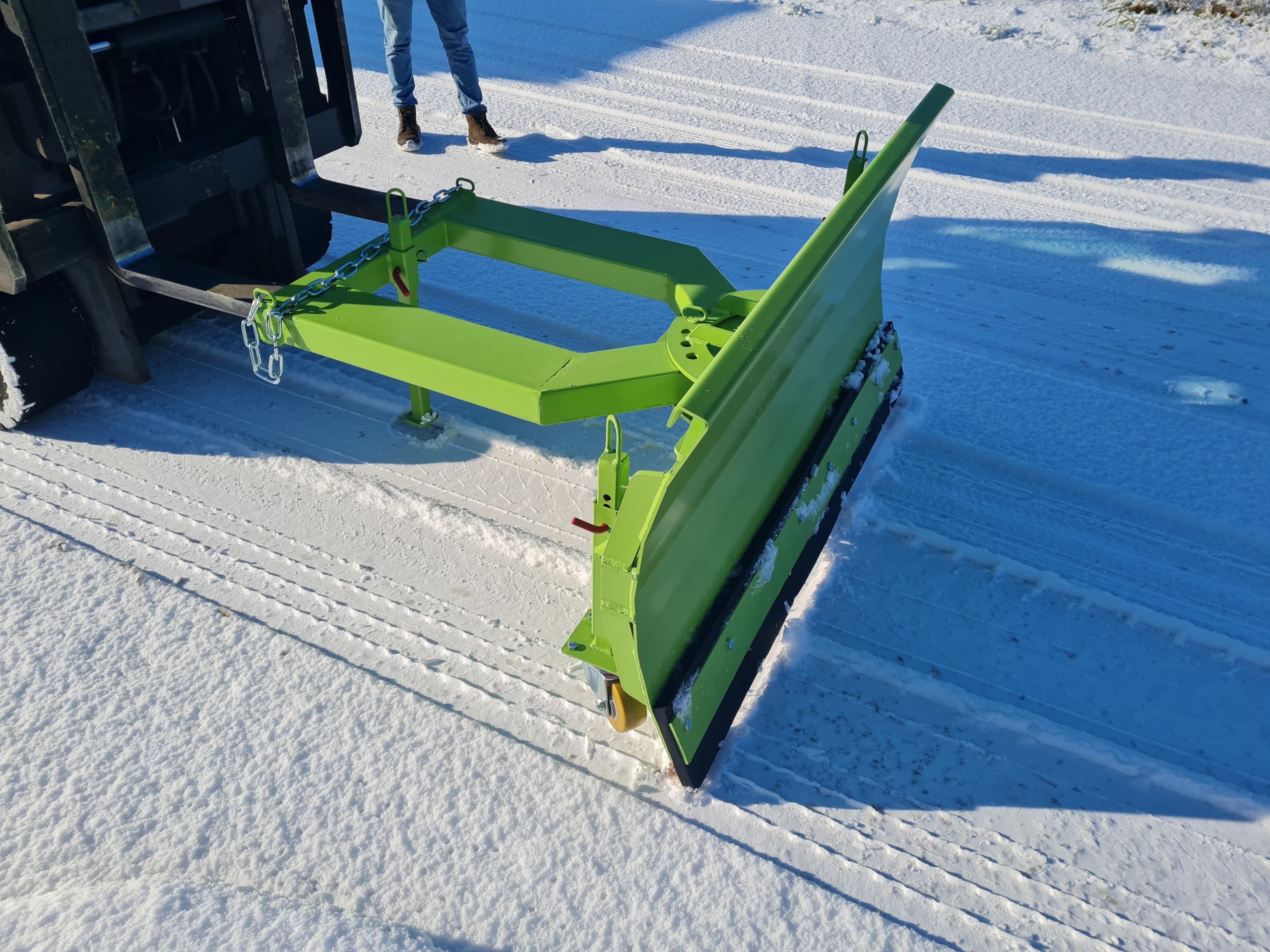

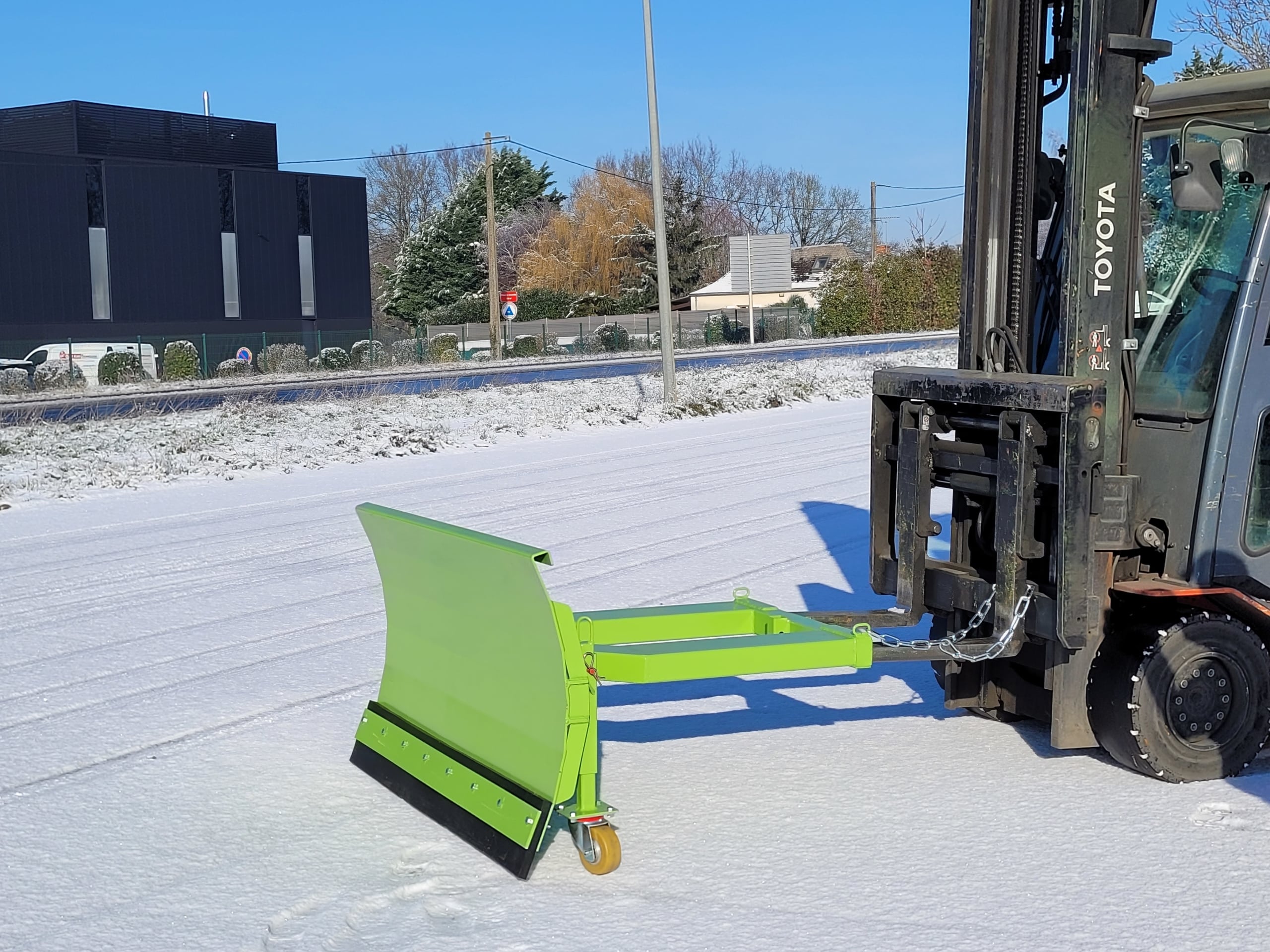

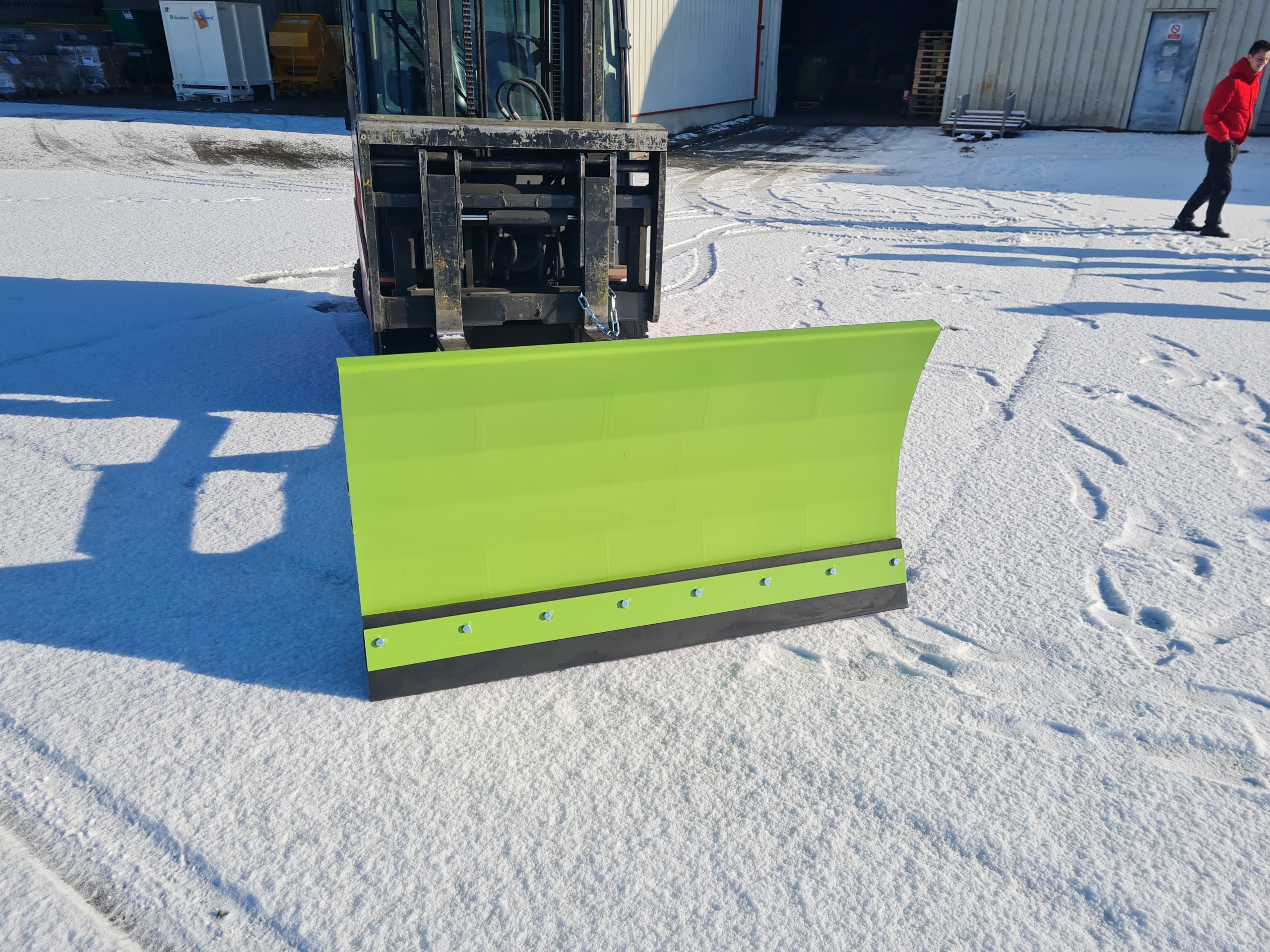

  • With highly-resistant rubber scrapper (65 shores), 2 pivoting castors guarantee constant blade height. Prevents ground damage when clearing snow. Blade height (D) 825 mm

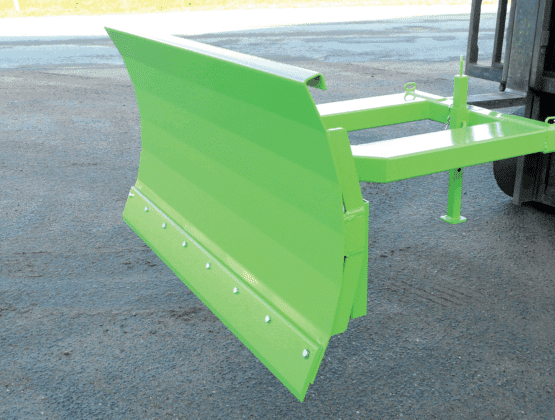

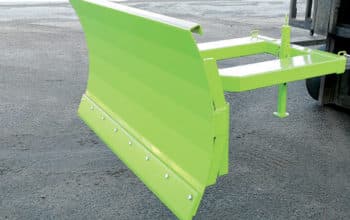

  • With bolted steel blade (400 HB), can be uses throughout the year for leveling, clearing or cleaning surfaces
  • Blade height (D) 800 mm
