Tipping skips

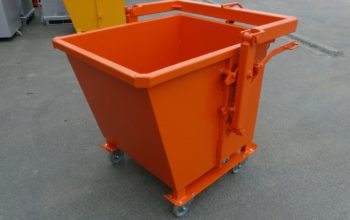

Skip with lifting beam attachment and handle
CG
CG
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
| capacity | Load | CASTORS | weight | PAINTED | |||||||
| litres | kg | Ø | A | B | C | I | D | K | E | kg | REF. |
| 575 | 1500 | – | 1090 | 1000 | 1110 | 795 | 1515 | 1925 | 1015 | 138 | CGP06000 |
| 575 | 1200 | 125 | 1090 | 1000 | 1110 | 795 | 1590 | 1925 | 1085 | 148 | CGP06121 |
| 700 | 1500 | – | 1290 | 1200 | 1110 | 795 | 1615 | 2110 | 1015 | 150 | CGP07000 |
| 700 | 1200 | 125 | 1290 | 1200 | 1110 | 795 | 1690 | 2110 | 1085 | 160 | CGP07121 |
| 880 | 1500 | – | 1290 | 1200 | 1310 | 995 | 1615 | 2110 | 1015 | 165 | CGP09000 |
| 880 | 1200 | 125 | 1290 | 1200 | 1310 | 995 | 1690 | 2110 | 1085 | 175 | CGP09121 |
| 1000 | 1500 | – | 1290 | 1200 | 1450 | 1135 | 1615 | 2110 | 1015 | 176 | CGP10000 |
| 1000 | 1200 | 125 | 1290 | 1200 | 1450 | 1135 | 1690 | 2110 | 1085 | 186 | CGP10121 |
|
Dimensions in mm for basic model (for guidance only).
|
|||||||||||
Product features
- Capacity : 575 to 1000 litres
- Bin : 3 mm reinforced sheet metal
- Interior bin height : 800 mm
- Model without castor
- Castor-mounted models (forward movement) have 2 fixed + 2 pivoting Ø125 mm alu/polyurethane castors and a handrail
