ACCESSORIES

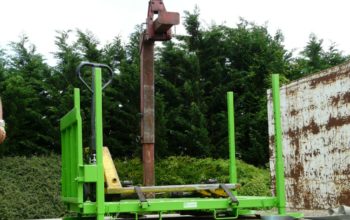

Mobile delivery ramp
QL
QL
Quick and secure unloading of pallets of materials at sites where access is difficult.
Forklift grip + pallet lift.
Type-approved by a regulatory authority.
Forklift grip + pallet lift.
Type-approved by a regulatory authority.
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
| load | fork | weight | PAINTED | |||||||
| kg | A | B | C | I | D | E | F | sleeves ins. | kg | REF. |
| 2000 | 2790 | 1800 | 1260 | 980 | 1300 | 190 | 700 | 170 x 70 | 270 | QLP20000 |
| Dimensions in mm for basic model (for guidance only). | ||||||||||
Product features
Use
- The ramp enables you to pass above ground drainage or trenches and compensate for uneven ground.
- It enables a pallet to be delivered to a garage or enclosed area.
- Unload, wherever you wish, in spite of difficult to access sites or sites that are difficult to move around.
- Once the platform is stablised, remove your pallet with your pallet lift/truck cranes.
- Unload using your pallet truck.
