Tipping skips

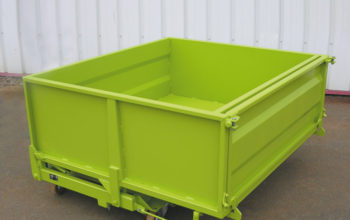

Low tipping skip with front door
BS
BS
Perfect for collecting wood scraps, glass, sawdust and dust.
Work table height.
Work table height.
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
| capacity | load | castors | weight | PAINTED | |||||||||
| litres | kg | Ø | A | B | C | I | D | D1 | F | kg | REF. | ||
| 410 | 1500 | – | 1000 | 814 | 1150 | 1000 | 780 | 495 | 730 | 168 | BSP05000 | ||
| 410 | 1200 | 125 | 1000 | 814 | 1195 | 1000 | 850 | 495 | 380 | 180 | BSP05121 | ||
| 660 | 1500 | – | 1200 | 1030 | 1400 | 1250 | 780 | 495 | 900 | 210 | BSP07000 | ||
| 660 | 1200 | 125 | 1200 | 1030 | 1445 | 1250 | 850 | 495 | 630 | 223 | BSP07121 | ||
| 790 | 1500 | – | 1250 | 1030 | 1650 | 1500 | 780 | 495 | 900 | 230 | BSP09000 | ||
| 790 | 1200 | 125 | 1250 | 1030 | 1695 | 1500 | 850 | 495 | 850 | 243 | BSP09121 | ||
| 990 | 1500 | – | 1510 | 1296 | 1650 | 1500 | 780 | 495 | 900 | 268 | BSP11000 | ||
| 990 | 1200 | 125 | 1510 | 1296 | 1695 | 1500 | 850 | 495 | 850 | 280 | BSP11121 | ||
| 1050 | 1500 | – | 1250 | 1030 | 2150 | 2000 | 780 | 495 | 900 | 279 | BSP12000 | ||
| 1050 | 1200 | 125 | 1250 | 1030 | 2200 | 2000 | 850 | 495 | 900 | 290 | BSP12121 | ||
| 1300 | 2000 | – | 1510 | 1296 | 2150 | 2000 | 780 | 495 | 900 | 318 | BSP16000 | ||
| 1300 | 1200 | 150 | 1510 | 1296 | 2200 | 2000 | 890 | 495 | 900 | 330 | BSP16151 | ||
| Dimensions in mm for basic model (for guidance only). | |||||||||||||
Product features
- Capacity : 410 to 1300 litres
- Lever for manual tipping (option: automatic release possible) Safety latches on lever
- Springs dampen end of tipping process (adjustable tension)
- Fork sleeves can be modified on request.
Aperture : 170 x 70 mm.
Spacing : see F in table - Pedestal-mounted models or castormounted models have 2 fixed and 2 pivoting alu/polyurethane castors and a handrail
- Options: lid with ferrule, leak proof door and visualization window (see BN range)
