SHOVELS & BUCKETS

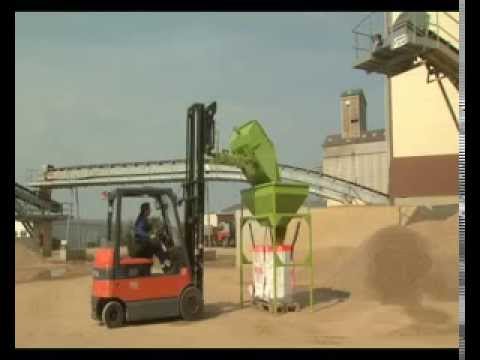

Loading shovel mechanical tilting
PCM
PCM
For use with forklift.
Manual tipping.
For loading bulk products from ground level.
Manual tipping.
For loading bulk products from ground level.
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
| CAPACITy m3 |
load kg |
a | b | i | d | f | fork sleeves ins.. | FORK CDG | weight kg |
PAINTED REF. |
| 0,25 | 1000 | 1720 | 1100 | 750 | 490 | 470 | 170 x 65 | 1060 | 168 | PMP07502 |
| 0,5 | 1500 | 1940 | 1300 | 1000 | 560 | 700 | 170 x 65 | 1060 | 220 | PMP10005 |
| 0,8 | 2000 | 1950 | 1300 | 1300 | 760 | 700 | 170 x 65 | 1060 | 270 | PMP13010 |
| 1,5 | 2000 | 1950 | 1500 | 1500 | 800 | 900 | 170 x 65 | 1110 | 353 | PMP15015 |
| 2 | 2500 | 1855 | 1500 | 2150 | 800 | 900 | 170 x 70 | 1050 | 445 | PMP20020 |
| 2,5 | 2500 | 1855 | 1500 | 2150 | 1010 | 900 | 170 x 70 | 1030 | 470 | PMP20025 |
| Dimensions in mm for basic model (for guidance only). | ||||||||||
Product features
- Capacity 0.25 to 2.5 m3
- Flat bottom : 5 mm sheet metal (0.25 m³ to 0.8 m³ models) or
6 mm sheet metal (1.5 m³ to 4 m³ models) - Beveled blade, 400 HB, 15 mm sheet metal
- Welded band reinforces fork sleeves entry points
- Tipping angle : 120°
- Metal casing protects locking spring and hook
- Safety chain included
