ACCESSORIES
Hydraulic spreader for welded wire mesh
CR-H
CR-H

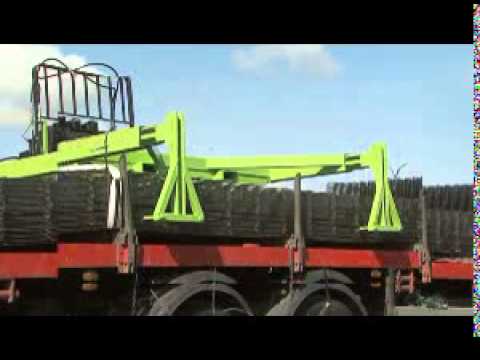

Quick and secure unloading of trucks.
Can handle piles.
Type-approved by regulatory body.
Can handle piles.
Type-approved by regulatory body.
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
| FOR forklift | RECOMMENDED wire meshING | B2 | C | D1 | F | FORK sleeves ins. |
WEIGHT kg | painted REF. | ||
| Counterbalanced |
Length from 2 to 4.80 m
|
2665 | 2695 | 460 | 900 | 170 x 70 | 490 | CRP57000 | ||
|
Length from 3.60 to 6 m
|
2665 | 3895 | 430 | 900 | 170 x 70 | 670 | CRP78000 | |||
| Length from 4.80 to 6 m | 2665 | 3895 | 430 | 900 | 170 x 70 | 590 | CRP77000 | |||
| Telescopic | Length from 2 to 4.80 m | 2665 | 2695 | 460 | 900 | 170 x 70 | 470 | CRP67000 | ||
| Length from 4.80 to 6 m | 2665 | 3895 | 430 | 900 | 170 x 70 | 550 | CRP87000 | |||
| Dimensions stated in mm, excluding options, and not contractually binding. | ||||||||||
Product features
- Permissible weight 2000 kg
- Can be fitted to counterbalanced or telescopic forklift truck forks
- Enables 2.40 m wide piles to be handled (for special 2 m width select the RGP option) and 2 to 6 m long piles, depending on the references
- Supplied with hoses fitted with 3/8 male couplings mounted fitted on support
- Remains securely fitted to the forklift truck by 12 mm diam. chains
