Filling hopper and big-bag lift
TB-L
TB-L
Filling and handling of the big-bag.
3 widths.
Permissible load 2 tonnes.See the colorsAsk for a quote
3 widths.
Permissible load 2 tonnes.See the colorsAsk for a quote
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
capacity litres | A | B | C | I | D | F | weight kg | PAINTED REF. |
830 | 1280 | 1000 | 1780 | 1700 | 870 | 680 | 170 | TBP28000 |
830 | 1280 | 1000 | 2180 | 2100 | 910 | 680 | 176 | TBP30000 |
1460 | 1280 | 1000 | 3080 | 3000 | 1140 | 680 | 233 | TBP33000 |
Dimensions in mm for basic model (for guidance only). |
Product features
- 3 mm steel panel hopper with reinforcement pleats
- 500 x 500 mm outlet channel

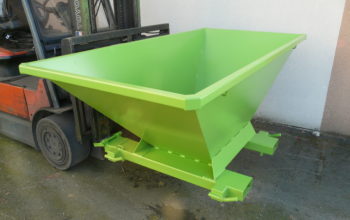

- Forks gripped in 5 mm thick sleeves,
170 x 55 int. passage,

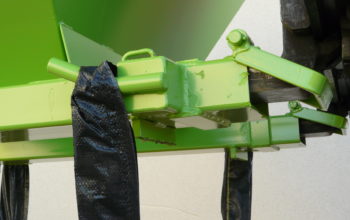

680 mm between forks - Distance between hooks 900 x 1041 mm
