HANDLING SKIPS

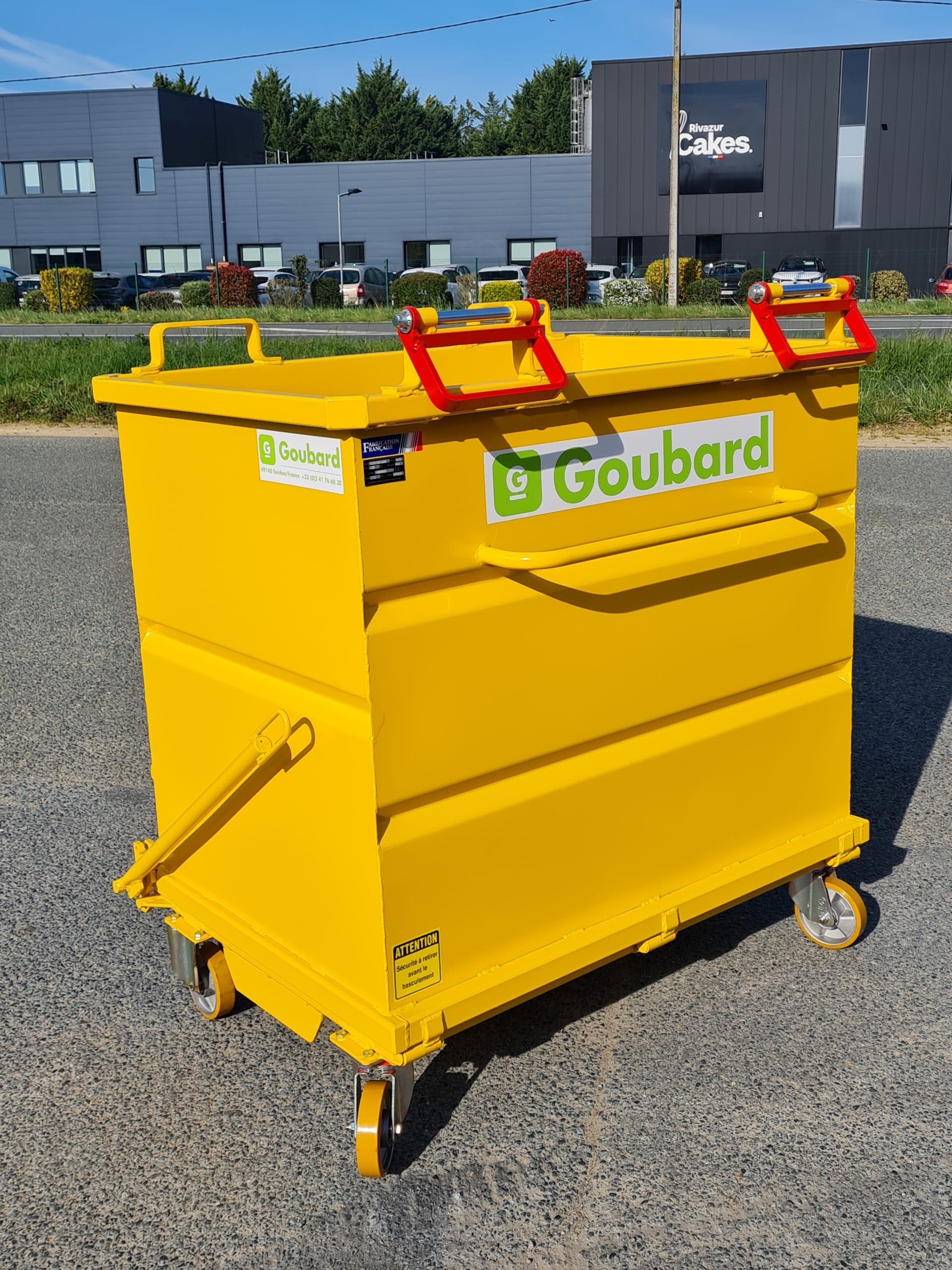

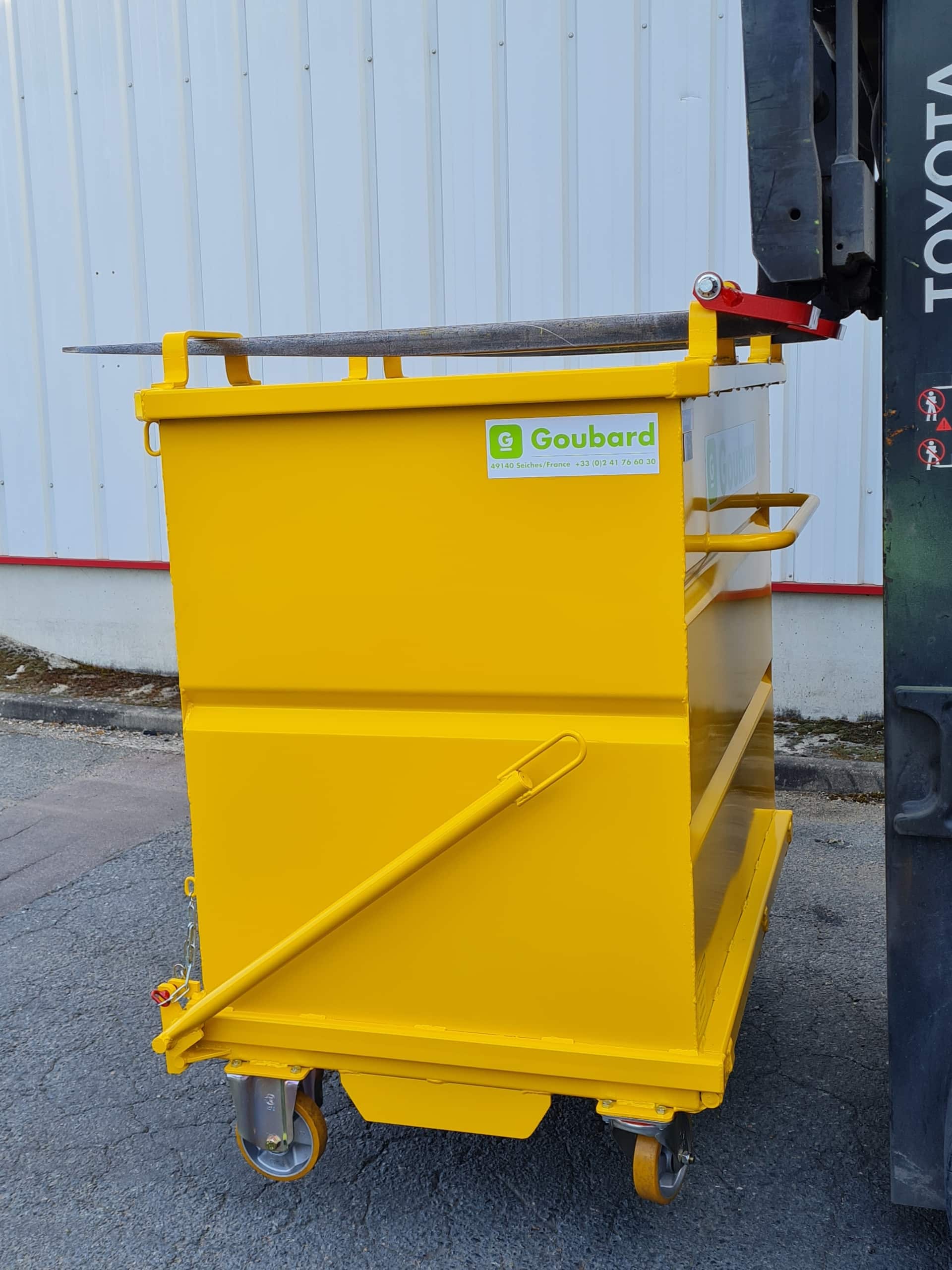

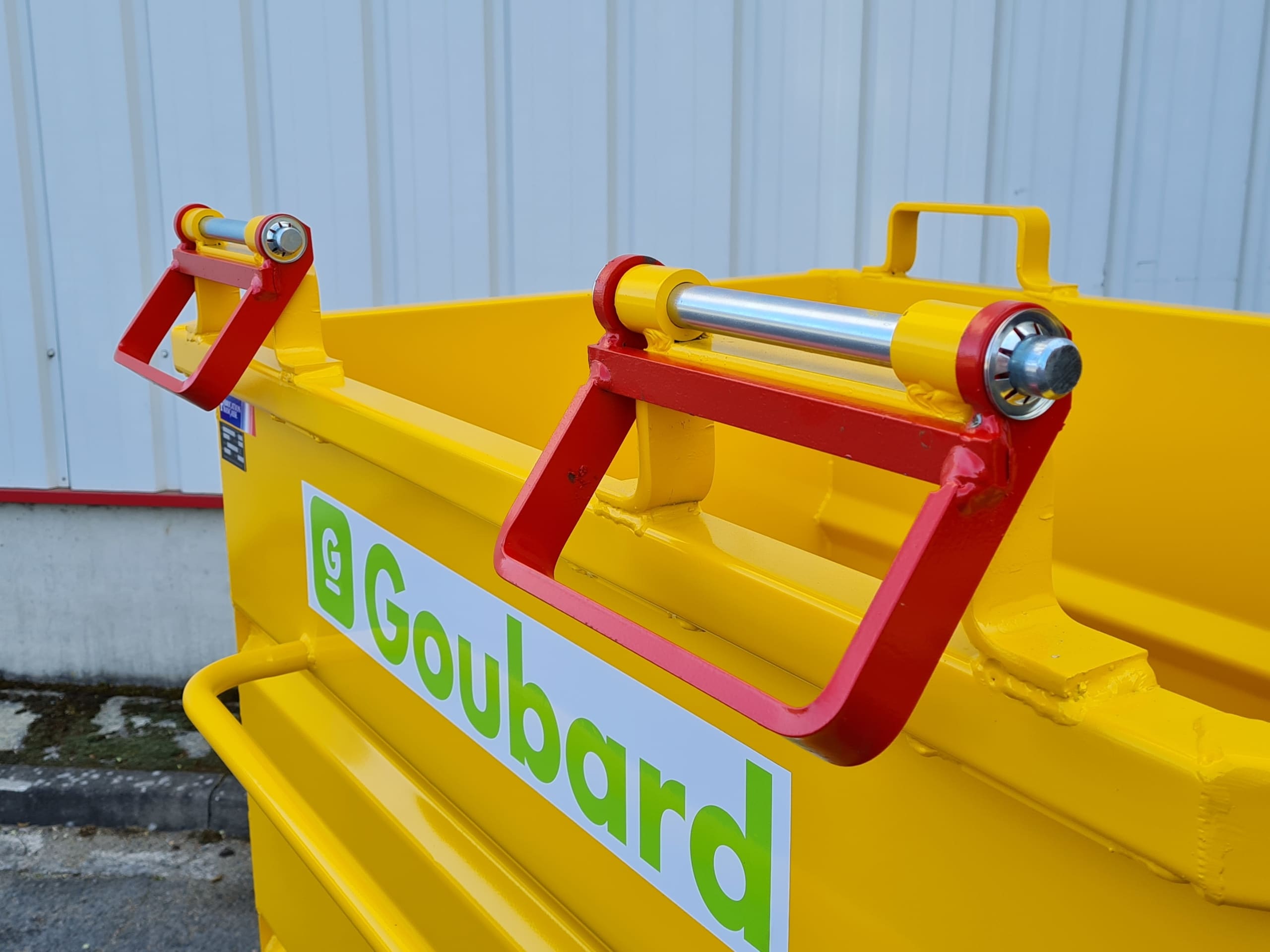

Drop bottom skip hinged stirrup safety

FAP
FAP_1


Capacities
and dimensions


Product
features


Download file
product

FAP
Full bottom emptying.
Best size/capacity ratio.
Automatically unlocks.See the colors
See more photos
Ask for a quote
Capacities and dimensions
ISO_FAP_EN
Glossary :

A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
CAPACITY
litres		 load
kg		 castors
Ø		 A B C I D K weight
kg		 PAINTED REF.
515 1500 – 1000 800 1135 1000 920 1620 125 FAP05000
515 1200 125N 1005 800 1135 1000 970 1620 130 FAP05120
830 1500 – 1000 800 1385 1250 1110 1810 155 FAP08000
830 1200 125N 1005 800 1385 1250 1165 1810 160 FAP08120
1000 1500 – 1000 800 1335 1200 1320 2020 165 FAP10000
1000 1200 150P 1005 800 1335 1200 1420 2020 175 FAP10151
1400 1500 – 1100 900 1385 1250 1465 2265 185 FAP14000
1400 1200 150P 1105 900 1385 1250 1565 2265 195 FAP14151
2075 2000 – 1220 1000 1935 1800 1430 2350 255 FAP20000
2075 1800 160P 1225 1000 1980 1800 1530 2350 267 FAP20161
Castors : N = Nylon, P = alu/polyurethane – Dimensions in mm for basic model (for guidance only).
Can not find the right model for you? We adapt!
Complete the specific form :
Product features
  • Capacity : 515 to 2075 litres
  • Upper lifting lugs, aperture : 200 x 65 and spacing (F) 780 mm
  • Sheet metal bin 2 mm rib, and 3 mm sheet
    metal bottom hardened by tubular frame
  • Upper edge reinforced with 3-ply anti-cut rim
  • Safety latch preventing any unintentional use
  • Model without wheels for use with pallet truck
  • Caster mounted models have 2 fixed and 2 pivoting castors and a handrail Forward movement except for 2075L which has lateral motion
  • For customised or reinforced versions, please contact us
  • Options : see P.40
