HOPPERS

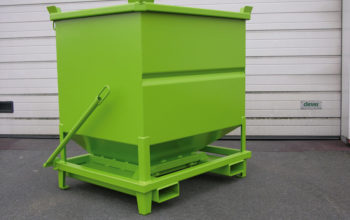

Drop-bottom hopper
FT
FT
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
| capacity | load | weight | PAINTED | |||||||
| litres | kg | A | B | C | I | D | F | kg | REF. | |
| 750 | 1500 | 950 | 800 | 1350 | 1200 | 1095 | 750 | 195 | FTP07000 | |
| 1000 | 2000 | 950 | 800 | 1350 | 1200 | 1355 | 750 | 220 | FTP10000 | |
| 1250 | 2250 | 1150 | 1000 | 1645 | 1500 | 1190 | 750 | 250 | FTP12000 | |
| 1500 | 2500 | 1150 | 1000 | 1645 | 1500 | 1355 | 750 | 270 | FTP15000 | |
| Dimensions in mm for basic model (for guidance only). | ||||||||||
Complete the specific form :
Product features
- Capacities from 750 to 1500 litres
- Empties via lower hinged trap-door.
Aperture :
• 500 x 530 mm (750 and 1000 L models)
• 500 x 730 mm (1250 and 1500 L models) - Lever for manual opening, remote control possible
- Fork sleeves aperture : 170 x 70 mm.
Spacing (F) : 750 mm - Safety chain included
- For customised products, please contact us
