ACCESSORIES

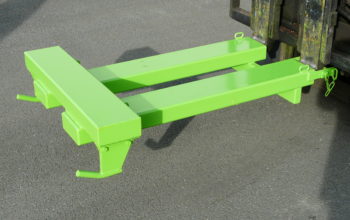

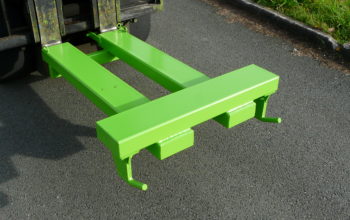

Big-bag loader F
CS-F
CS-F
For transporting Big-Bags.
Direct mounting on forks of forklift truck.
Approved by an inspection body.
Direct mounting on forks of forklift truck.
Approved by an inspection body.
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
Model CS-F
| LOAD KG | A | i | D | f | FORK SLEEVES INS. | WEIGHT KG | PAINTED REF. |
| 2 x 1000 | 1370 | 800 | 250 | 380 | 170 x 70 | 77 | CSP52000 |
| Dimensions in mm for basic model (for guidance only) | |||||||
Product features
- Maximum load 2000 kg
- 1 Fork heel blocking device
- Fork sleeves aperture and spacing (F) can be modified on request
- For customised products, please contact us
See more photos
