ACCESSORIES

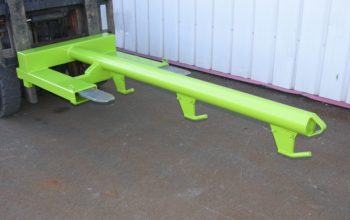

Big-bag loader A
CS-A
CS-A
For transporting Big-Bags.
Direct mounting on forks of forklift truck.
Approved by an inspection body.
Direct mounting on forks of forklift truck.
Approved by an inspection body.
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
Model CS-A
| NBer hooks | load KG | A | B1 | B2 | B3 | C | D | F | FOrk sleeves ins. | weight KG | painted ref. |
| 0 | 2000 | 2520 | Bar without hooks | 950 | 235 | 700 | 170 x 70 | 227 | CSP20000 | ||
| 2 | 2 x 1000 | 2520 | 955 | 1050 | – | 950 | 290 | 700 | 170 x 70 | 230 | CSP22000 |
| 3 | 3 x 660 | 2520 | 780 | 700 | 700 | 950 | 290 | 700 | 170 x 70 | 235 | CSP23000 |
| Dimensions in mm basic model (for guidance only) | |||||||||||
Can not find the right model for you? We adapt!
Product features
- Maximum load 2000 kg
- 1 Fork heel blocking device
- Fork sleeves aperture and spacing (F) can be modified on request
- For customised products, please contact us
