Tipping skips

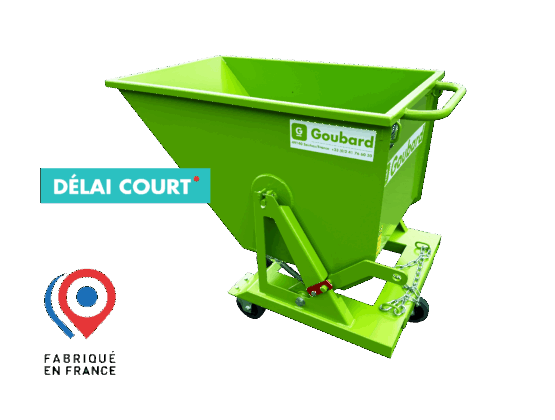

Auto tipping skip low-cost – small capacity
GIL
GIL
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
| capacity | load | castors | movement | fork | weight | PAINTED | |||||||
| litres | kg | Ø | A | B | C | I | D | F | sleeves ins. | kg | REF. | ||
| 230 | 750 | – | – | 1100 | 950 | 715 | 600 | 840 | 540 | 142 x 52 | 64 | ILP02000 | |
| 230 | 750 | 125 | Fwd. | 1100 | 950 | 715 | 600 | 930 | 540 | 142 x 52 | 70 | ILP02121 | |
| 390 | 750 | – | – | 1100 | 950 | 1120 | 1000 | 840 | 700 | 142 x 52 | 84 | ILP04000 | |
| 390 | 750 | 125 | Fwd. | 1100 | 950 | 1120 | 1000 | 930 | 700 | 142 x 52 | 90 | ILP04121 | |
| Dimensions in mm for basic model (for guidance only). | |||||||||||||

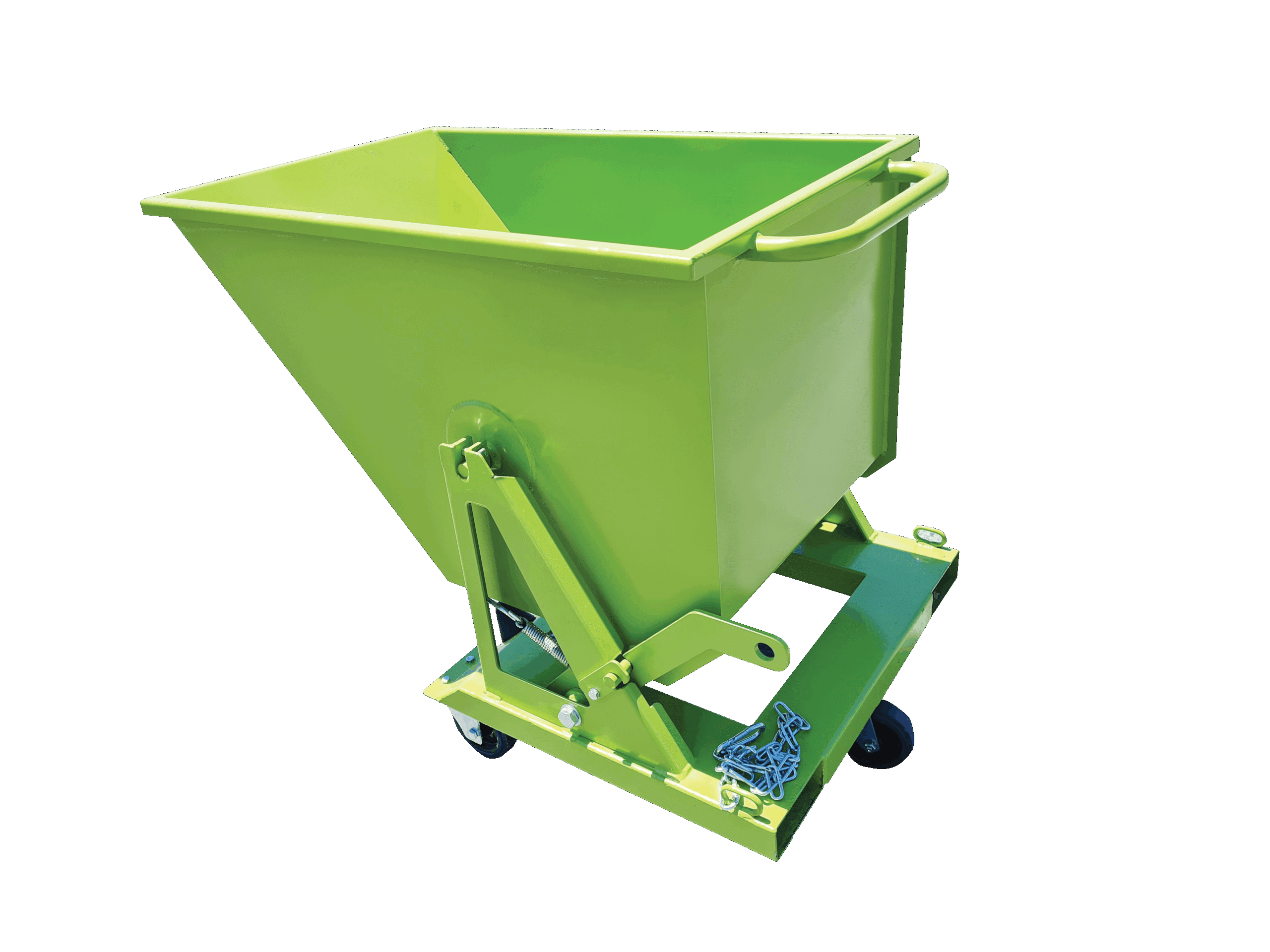

Product features
- Capacity : 230 or 390 litres
- Bin : 2 mm sheet metal

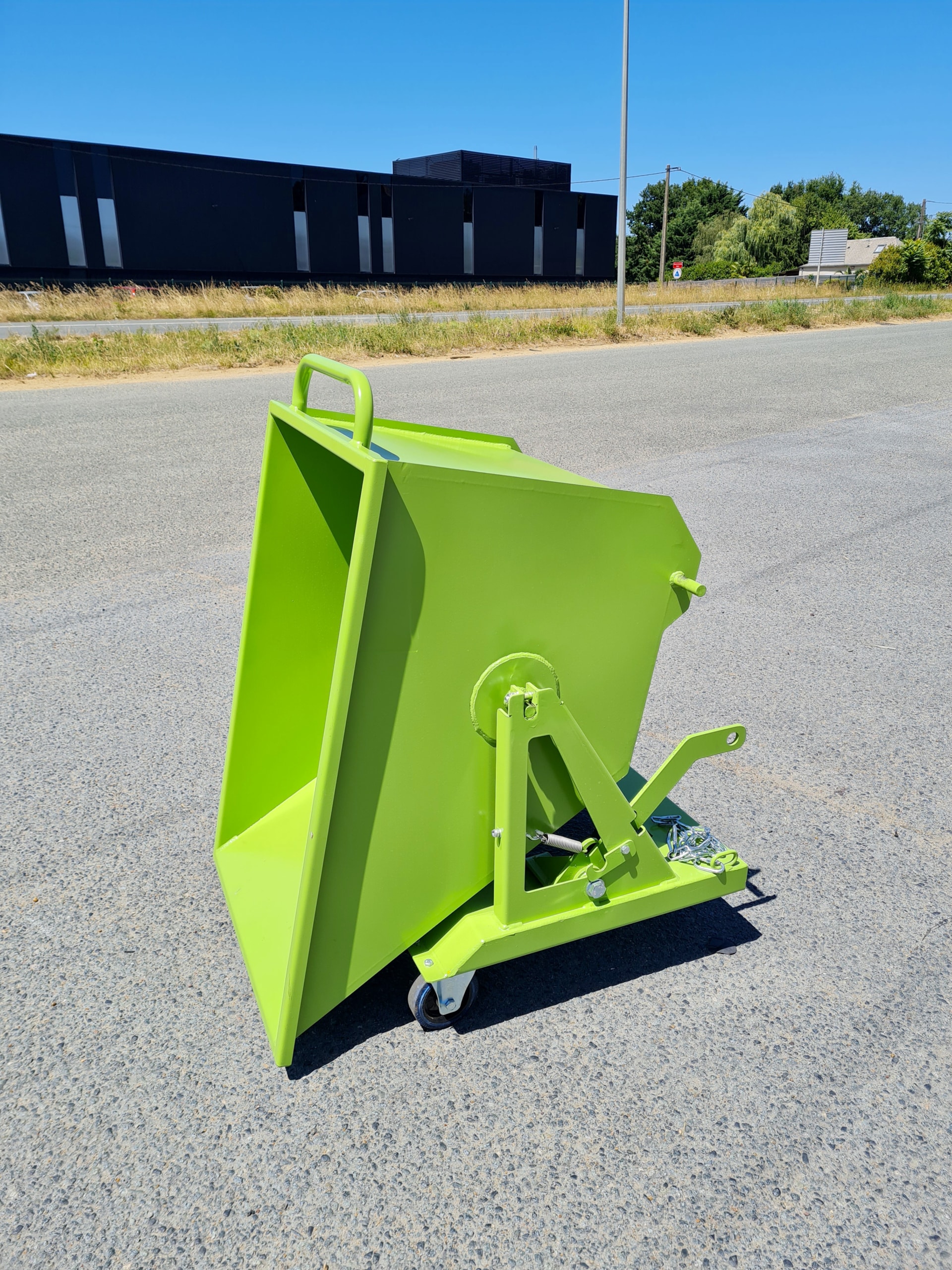

Chassis : 4 mm sheet metal - Rubber bumper dampens end of tipping process
- Safety chain included

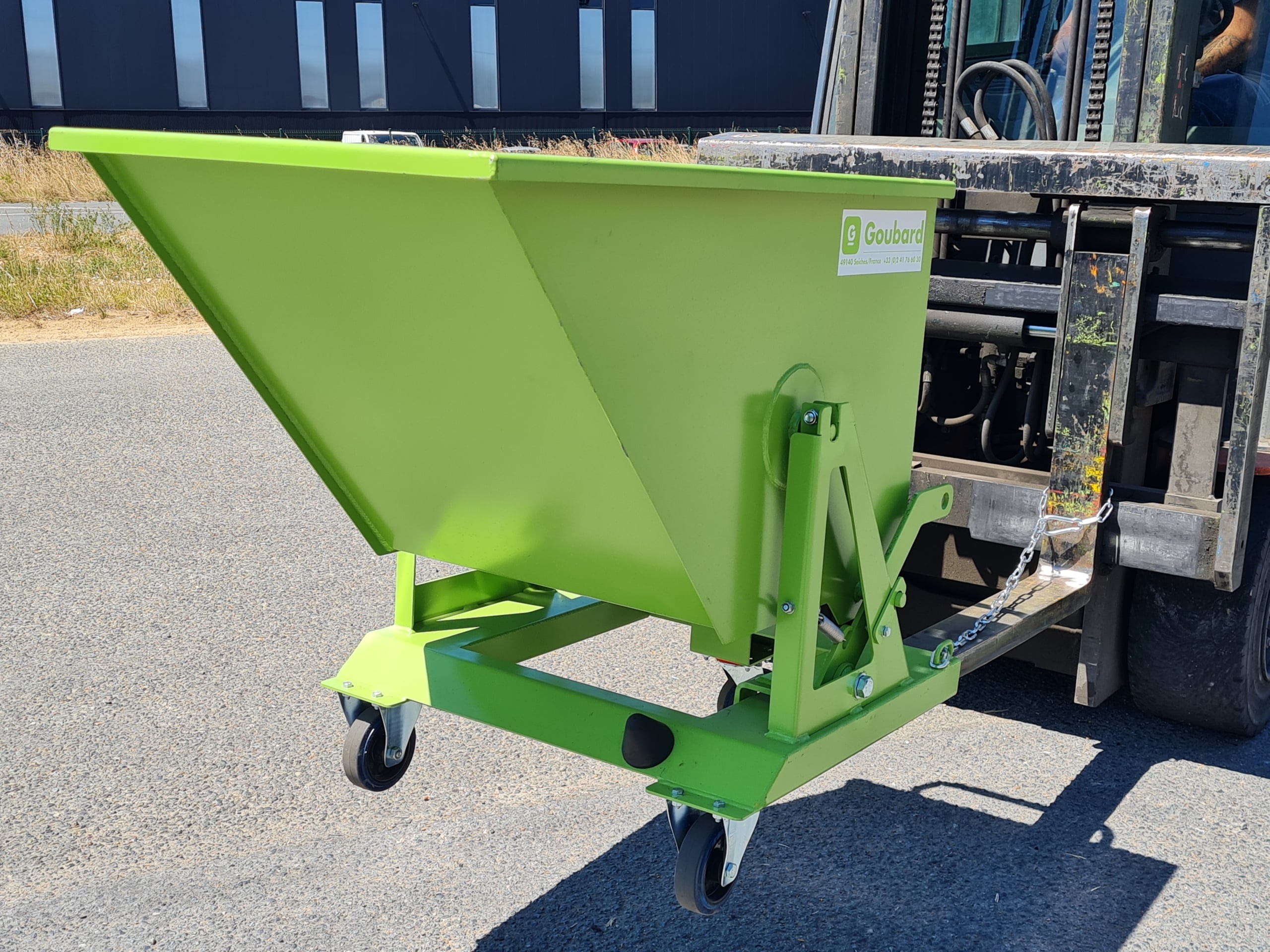

- Fork sleeves can be modified on request

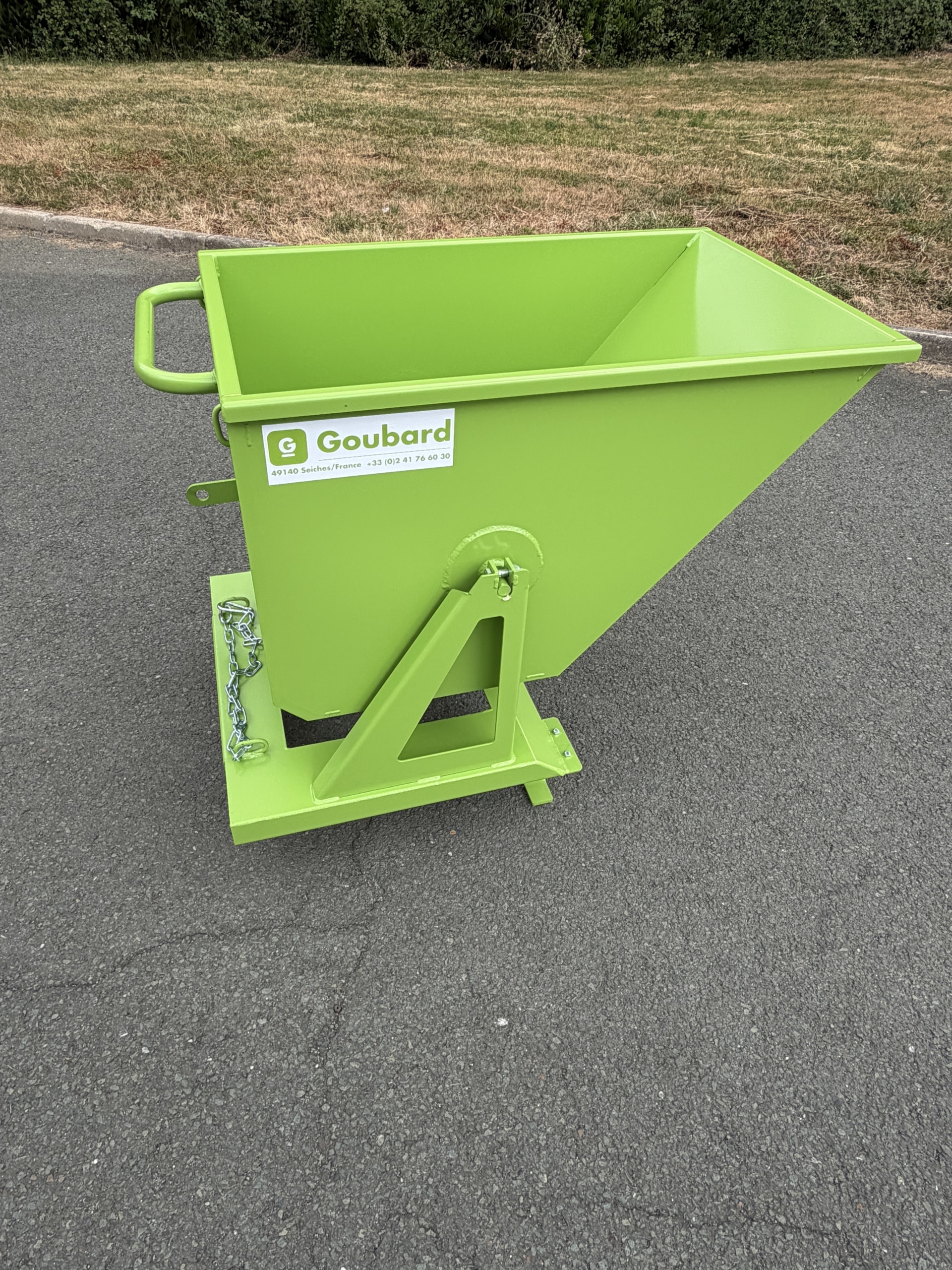

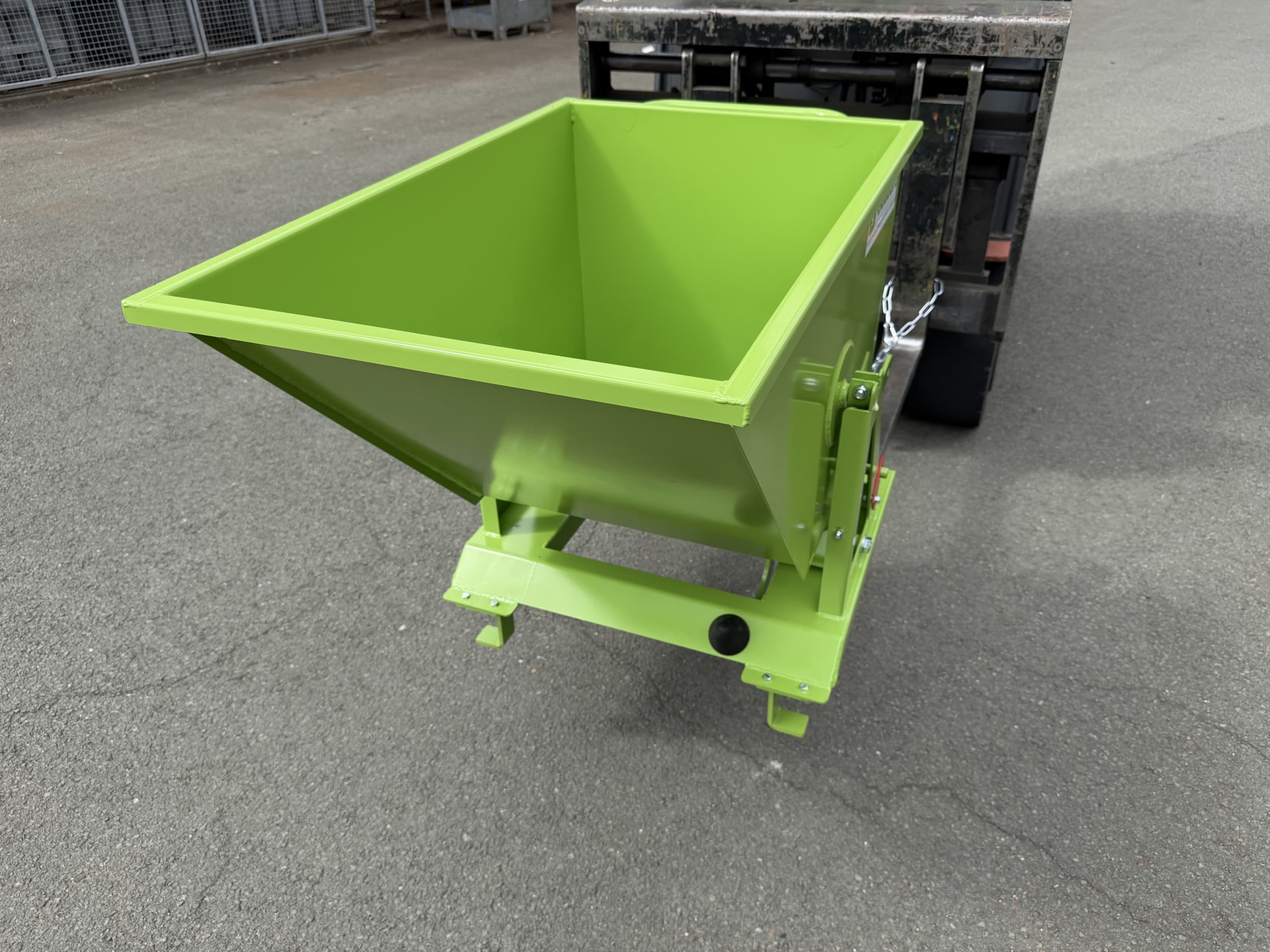

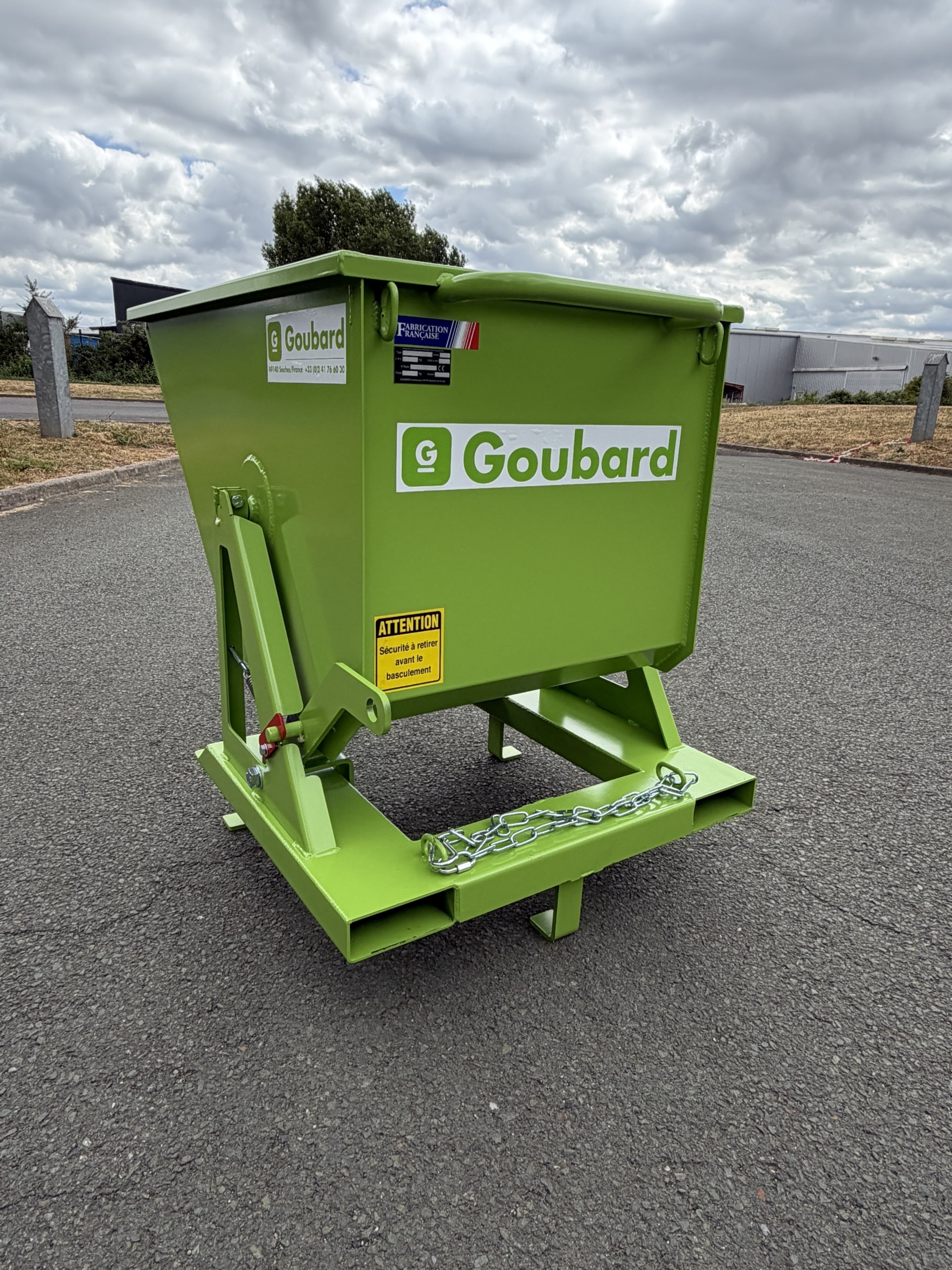

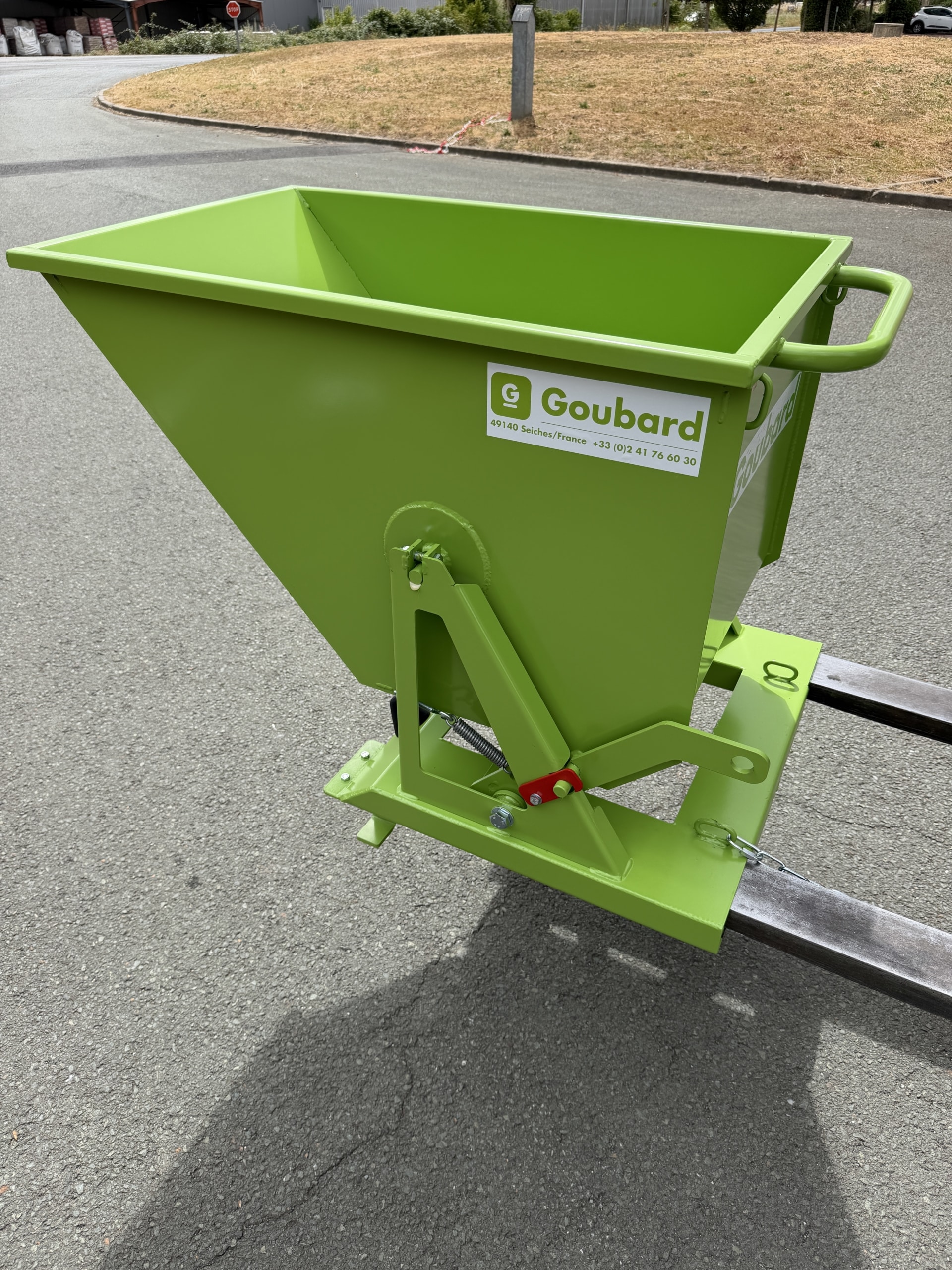

- Pedestal-mounted models (cannot be used with pallet trucks)

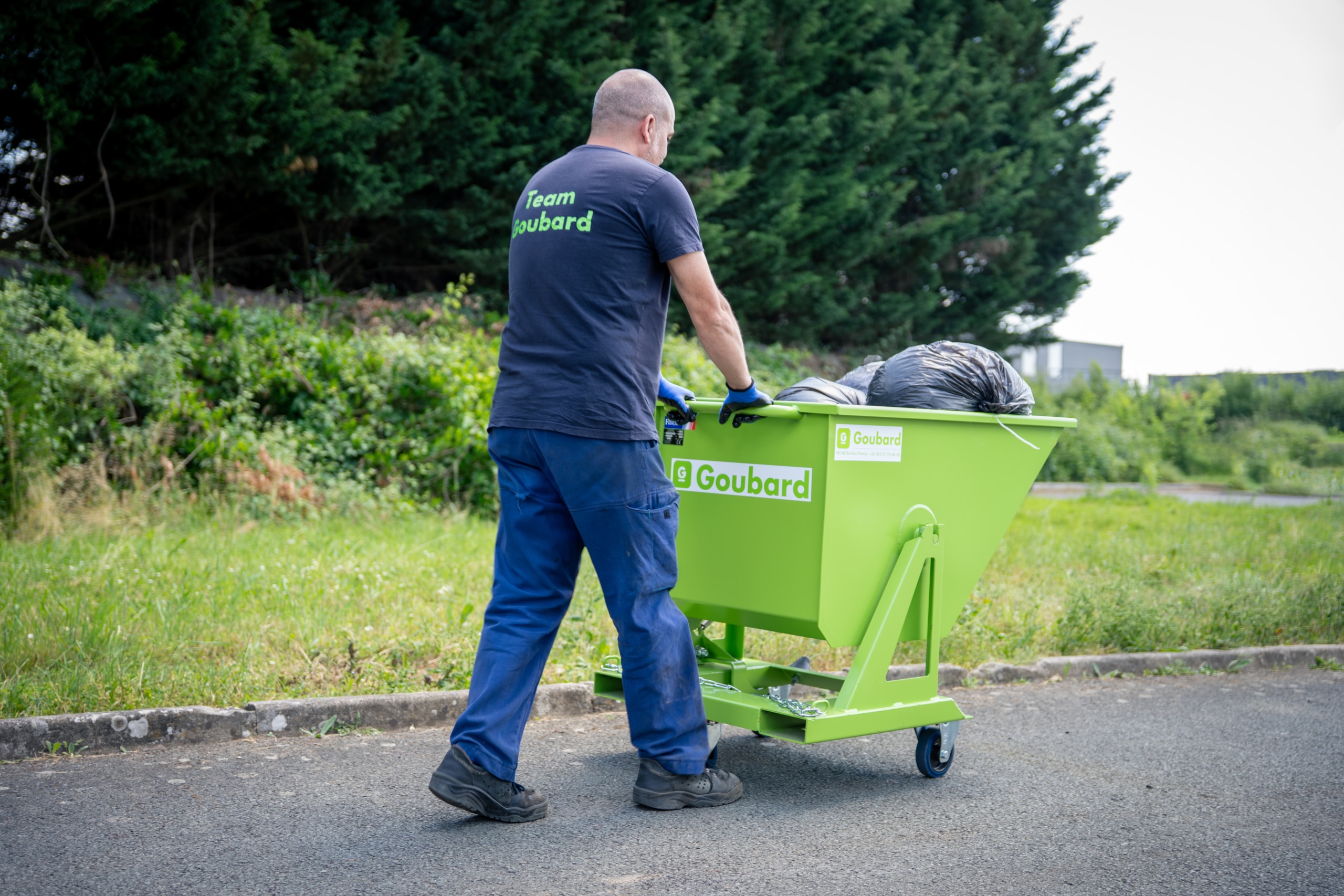

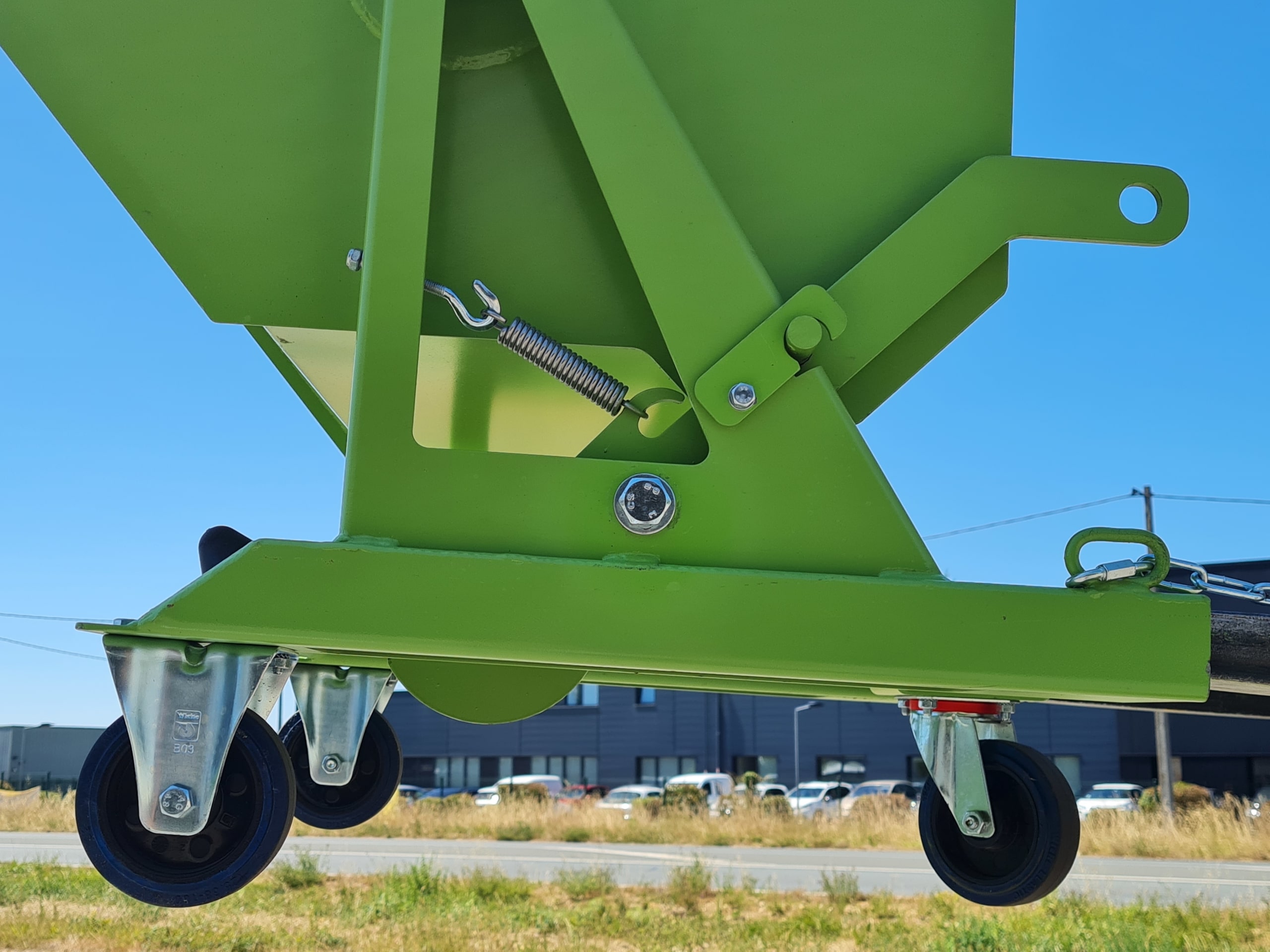

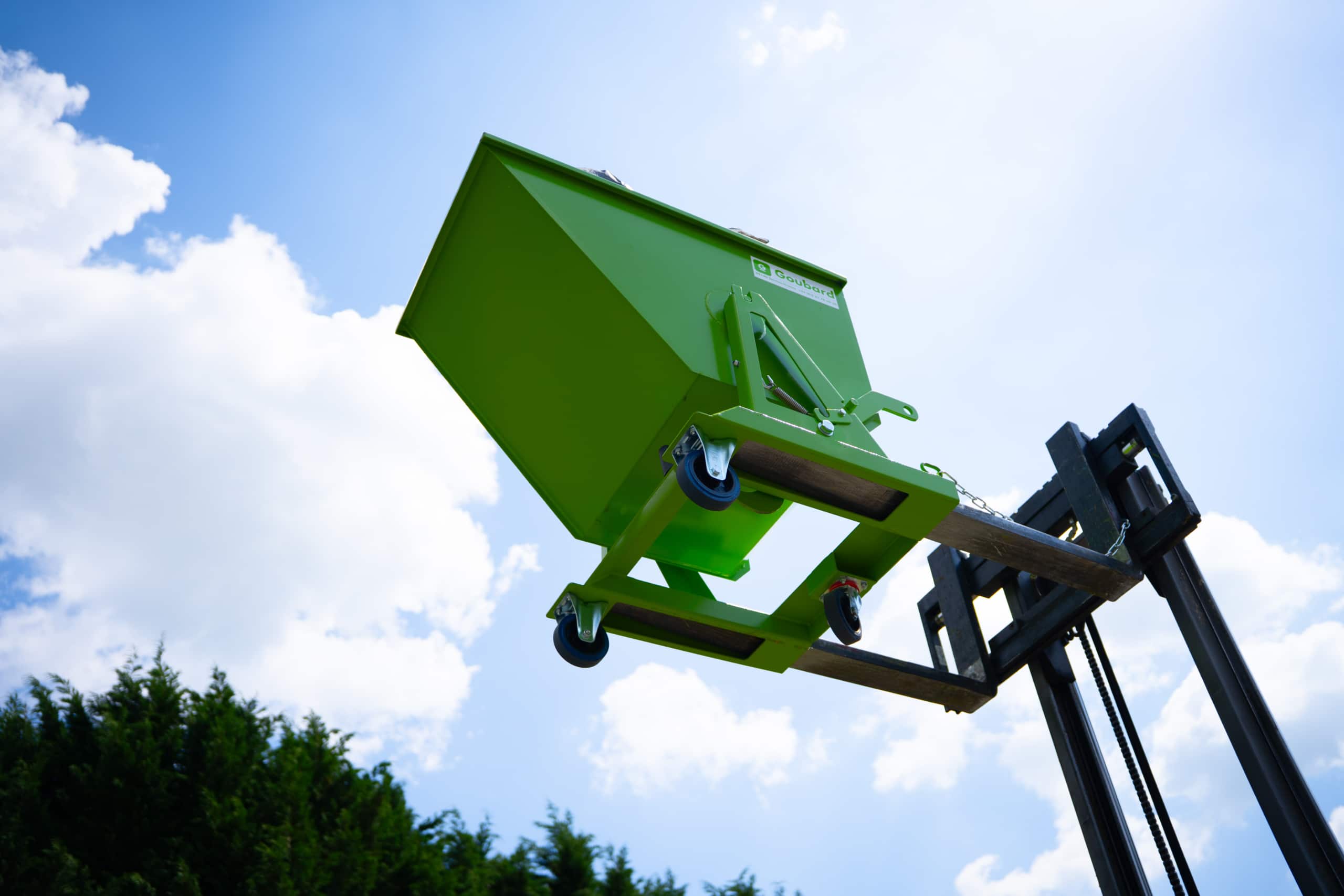

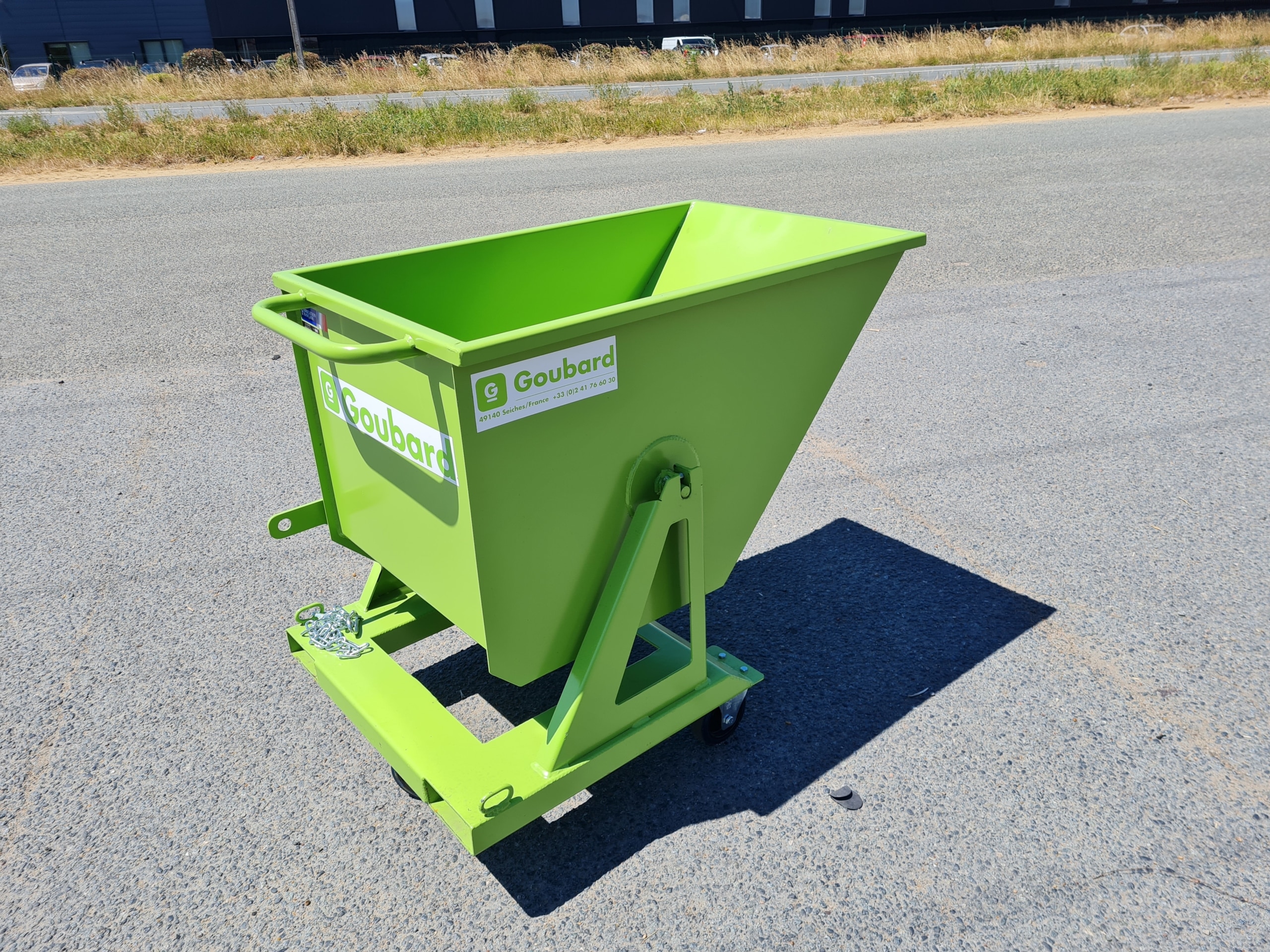

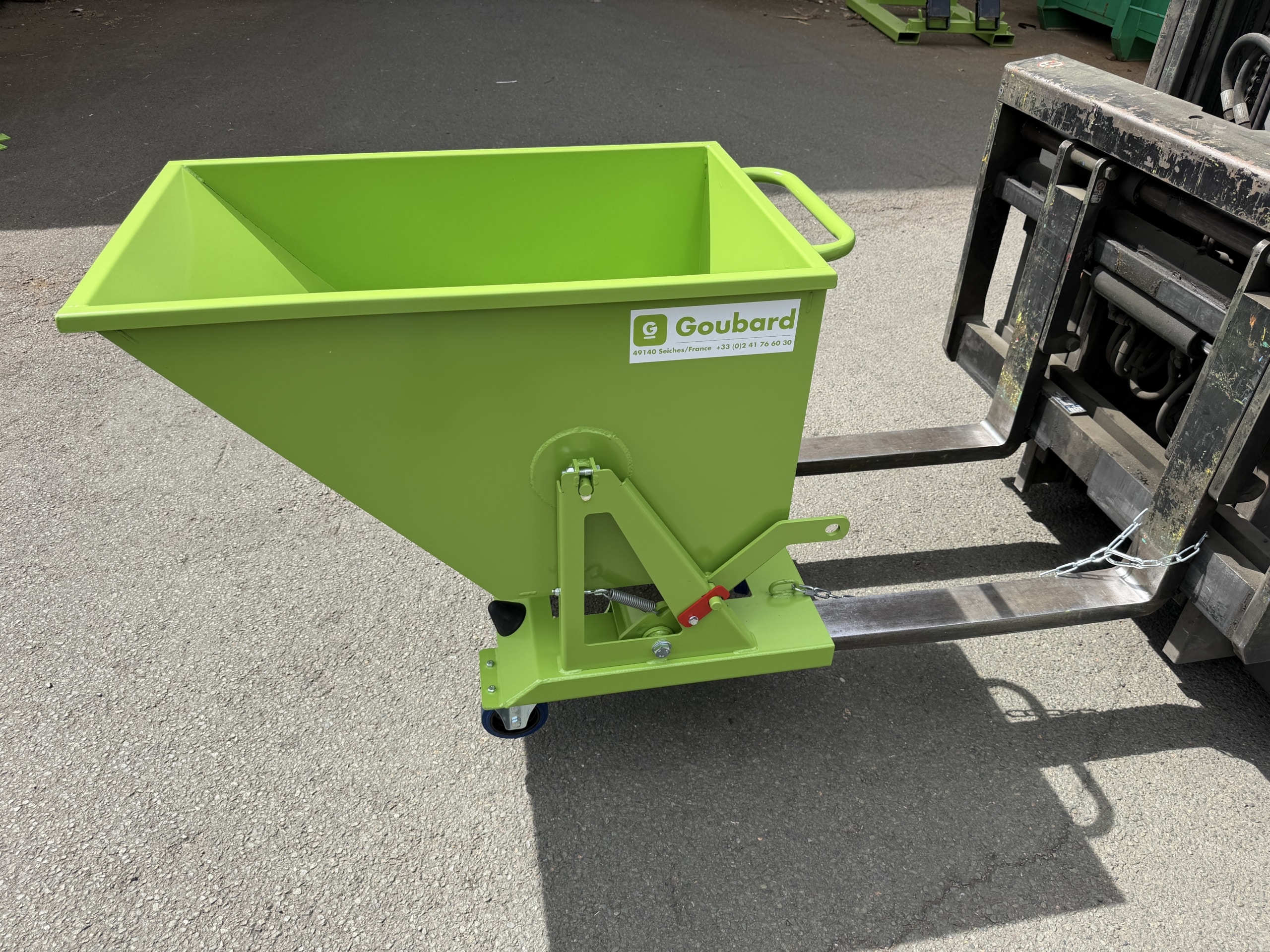

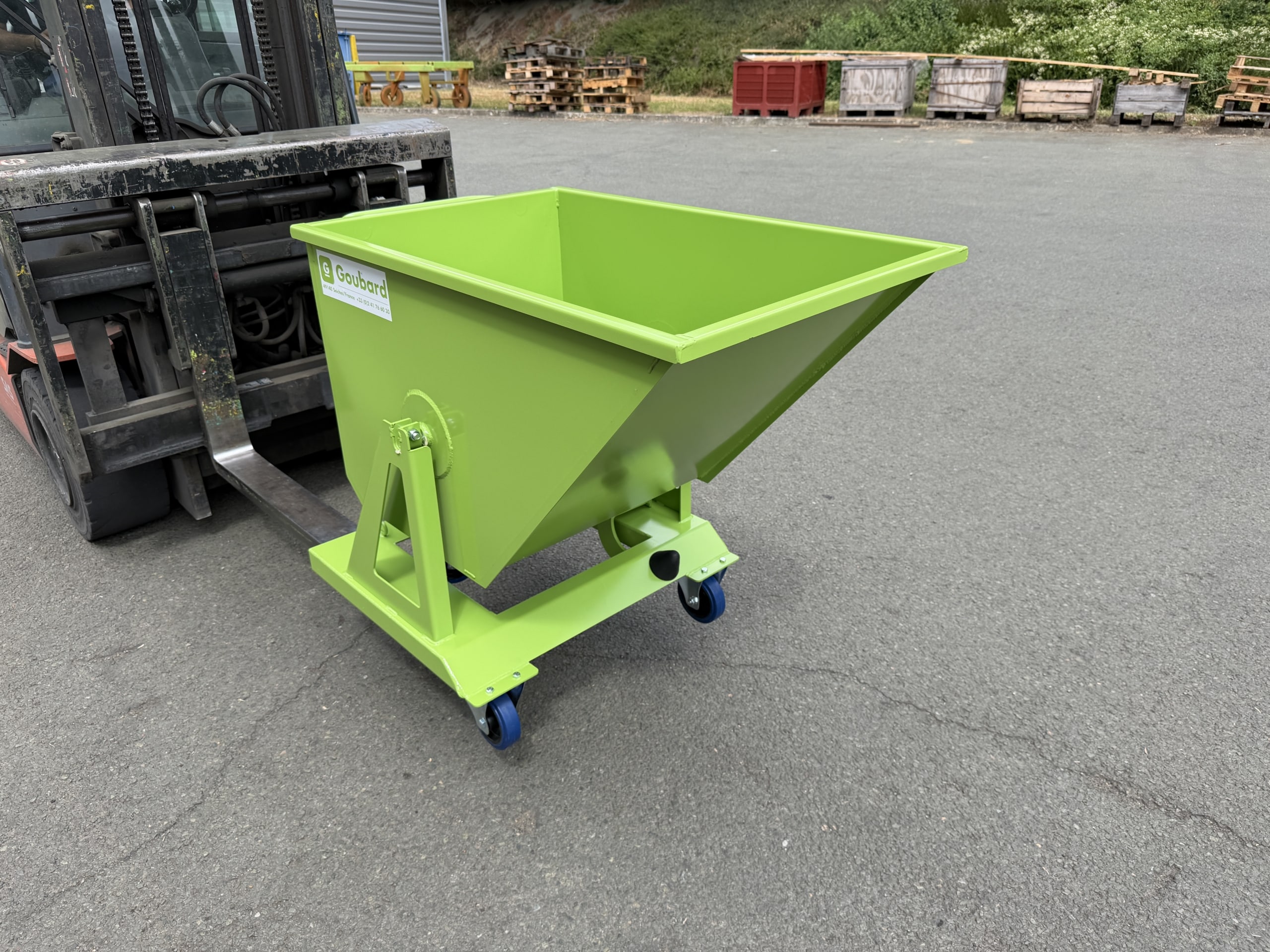

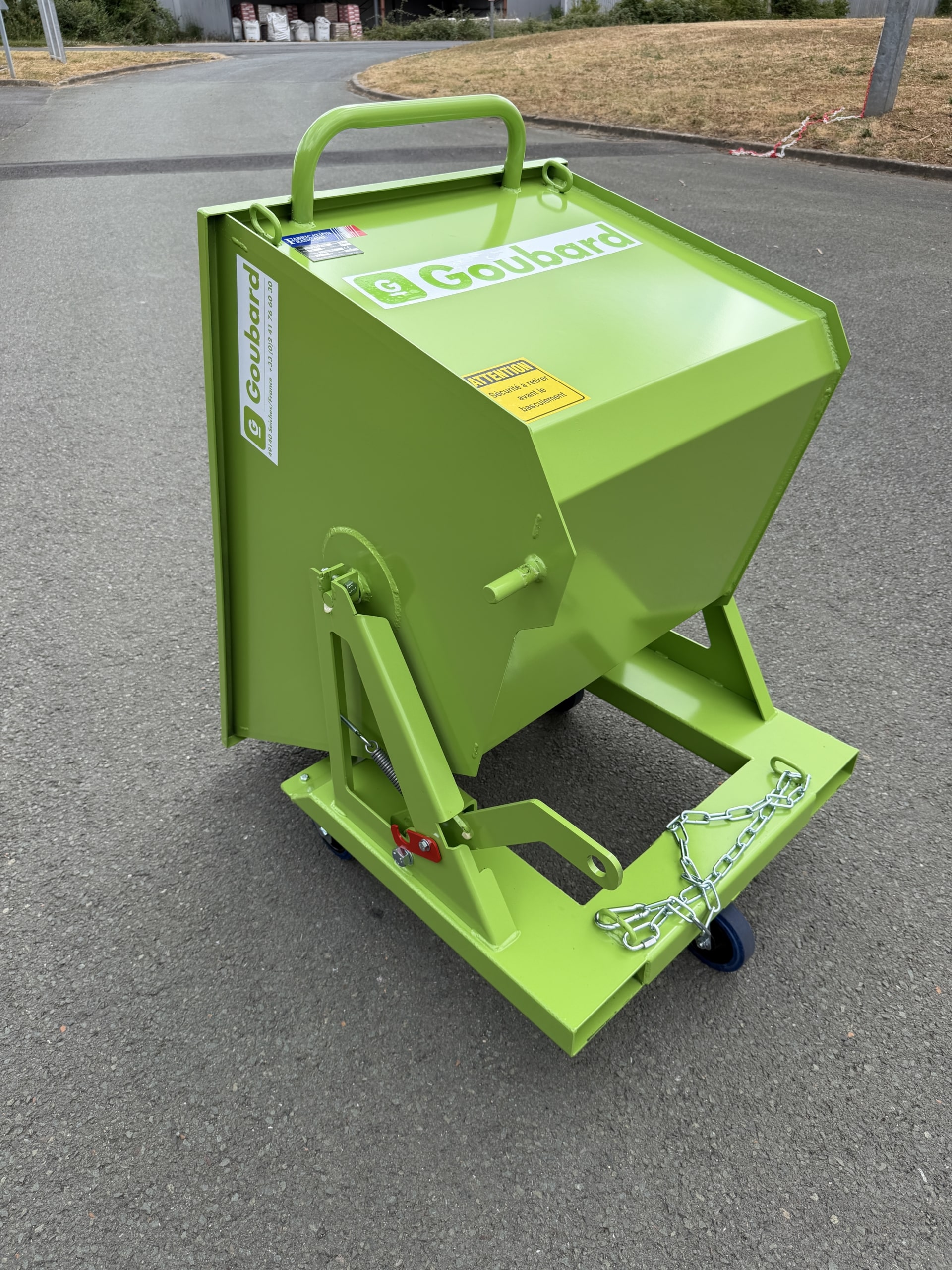

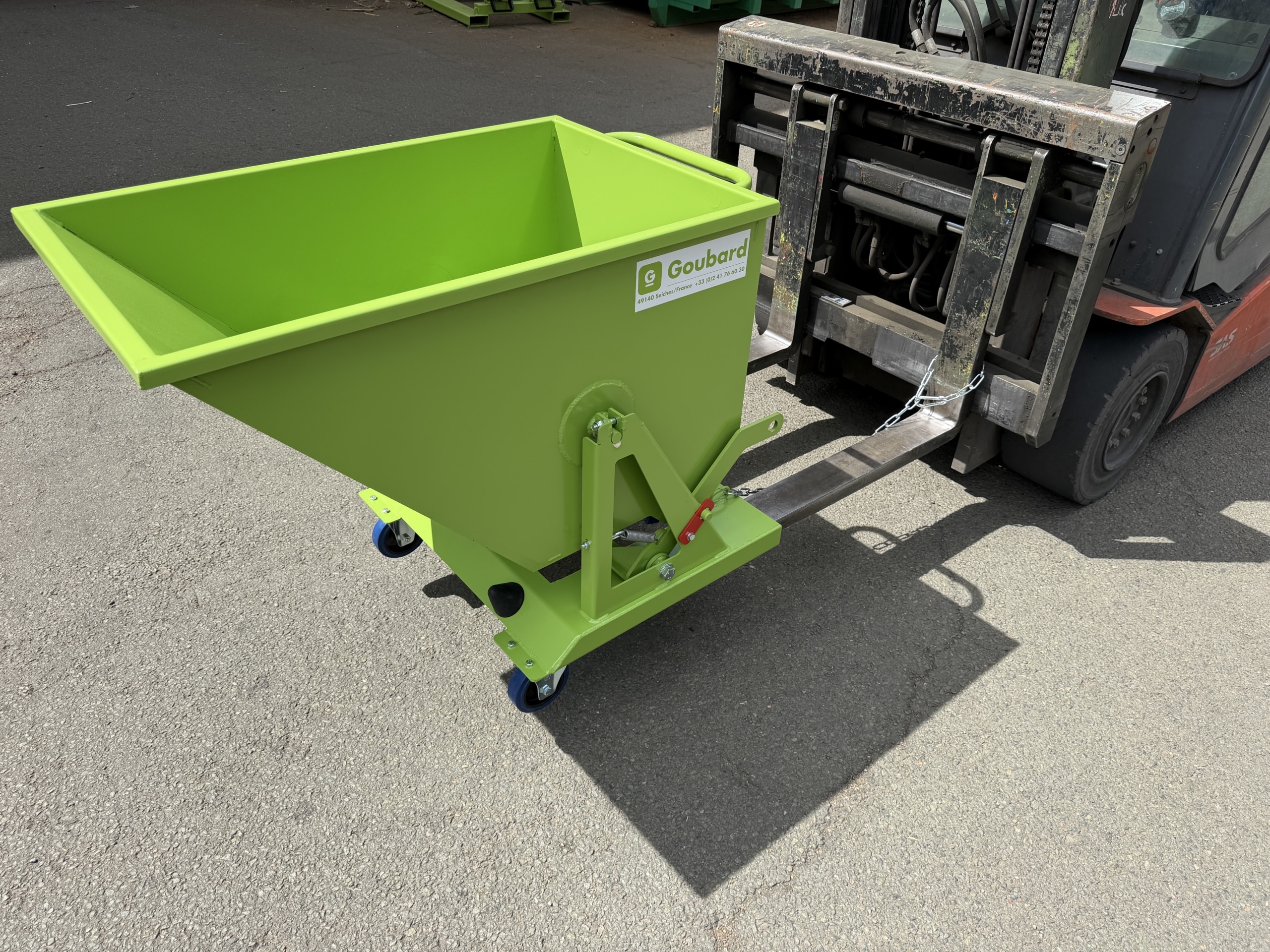

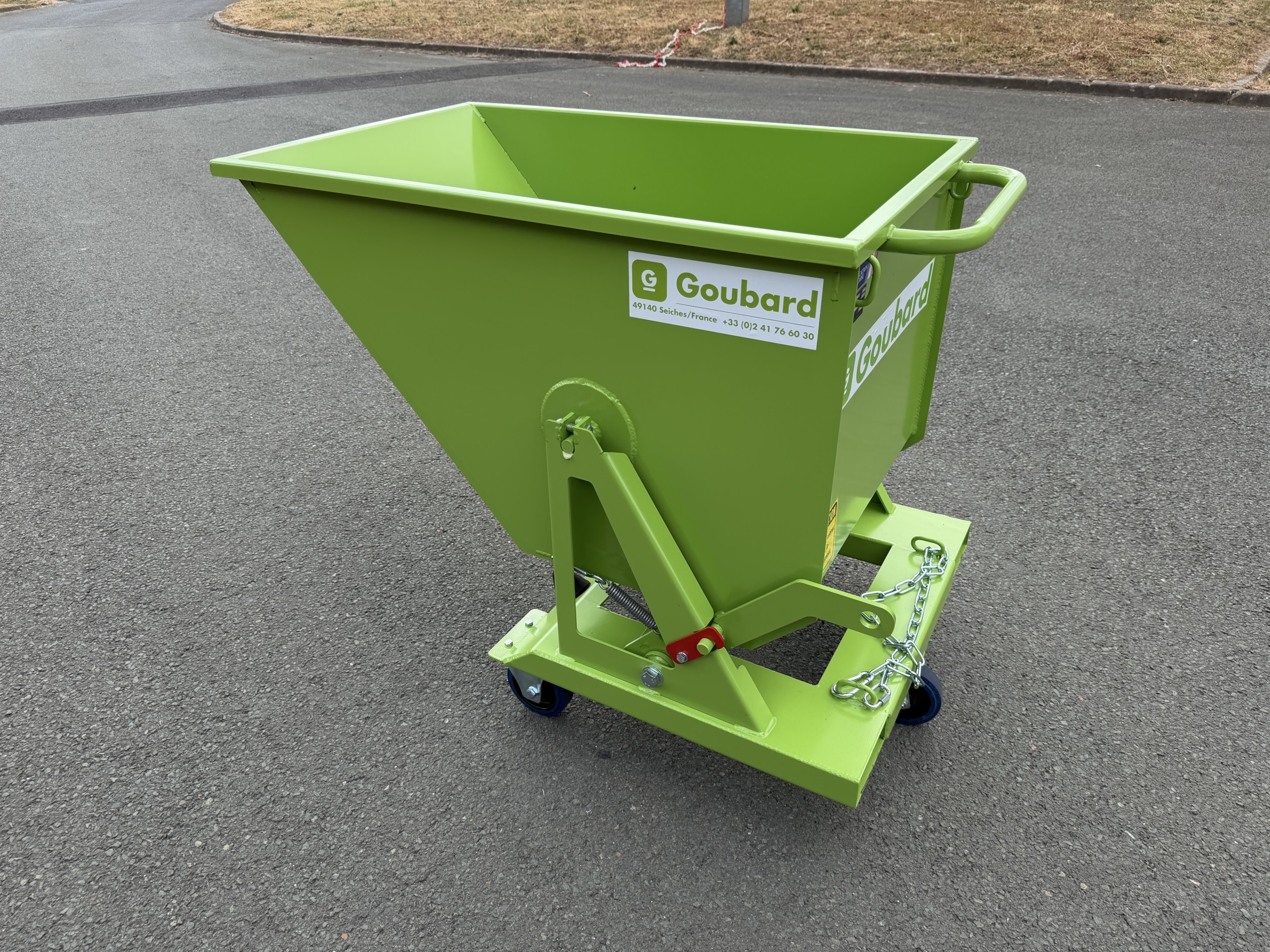

- Castor-mounted models (forward movement) have a handrail and Ø100 mm alu/polyurethane castors. 230 L : 2 fixed + 1 pivoting.
390 L : 2 fixed + 2 pivoting
