Tipping skips
Auto tipping skip low-cost – load 1000 kg
GIO
GIO
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
capacity | load | castors | movement | fork | weight | PAINTED | ||||||
litres | kg | Ø | A | B | C | I | D | F | sleeves ins. | kg | REF. | |
685 | 1000 | – | – | 1510 | 1400 | 965 | 750 | 1265 | 400 | 165 x 55 | 160 | IOP07000 |
685 | 1000 | 125 | Fwd. | 1510 | 1400 | 1020 | 750 | 1265 | 400 | 165 x 55 | 165 | IOP07123 |
910 | 1000 | – | – | 1510 | 1400 | 1215 | 1000 | 1265 | 600 | 165 x 55 | 180 | IOP09000 |
910 | 1000 | 125 | Fwd. | 1510 | 1400 | 1270 | 1000 | 1265 | 600 | 165 x 55 | 185 | IOP09123 |
1140 | 1000 | – | – | 1510 | 1400 | 1465 | 1250 | 1265 | 600 | 165 x 55 | 200 | IOP11000 |
1140 | 1000 | 125 | Fwd. | 1510 | 1400 | 1520 | 1250 | 1265 | 600 | 165 x 55 | 205 | IOP11123 |
1370 | 1000 | – | – | 1510 | 1400 | 1715 | 1500 | 1265 | 600 | 165 x 55 | 220 | IOP14000 |
1370 | 1000 | 125 | Fwd. | 1510 | 1400 | 1770 | 1500 | 1265 | 600 | 165 x 55 | 225 | IOP14123 |
Dimensions in mm for basic model (for guidance only).
|
Product features
- Capacity : 685 to 1370 L
- Bin : 3 mm sheet metal

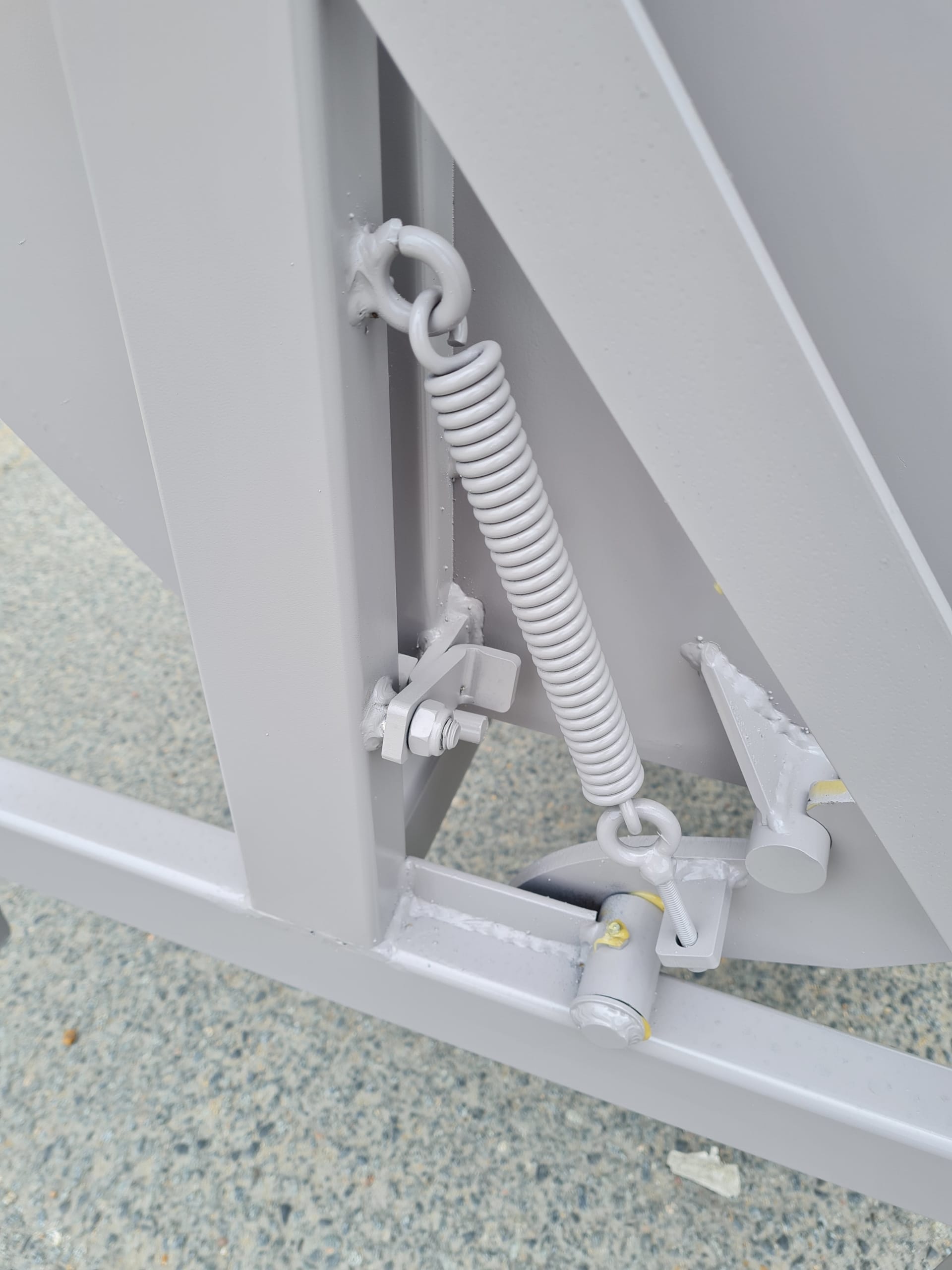

- Rubber bumpers dampen end of tipping process
- Fork sleeves (4 mm sheet metal) and spacing F can be modified on request

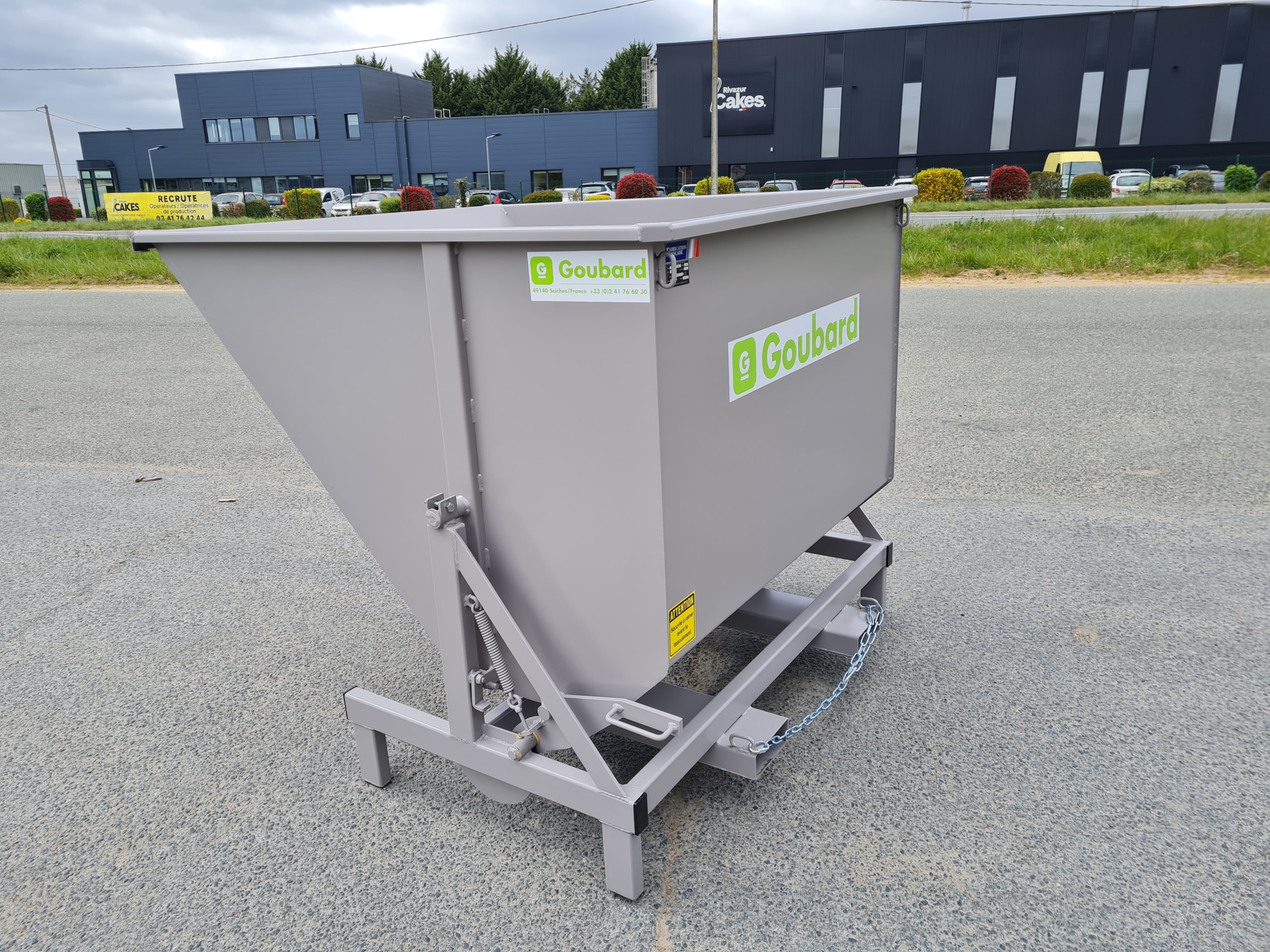

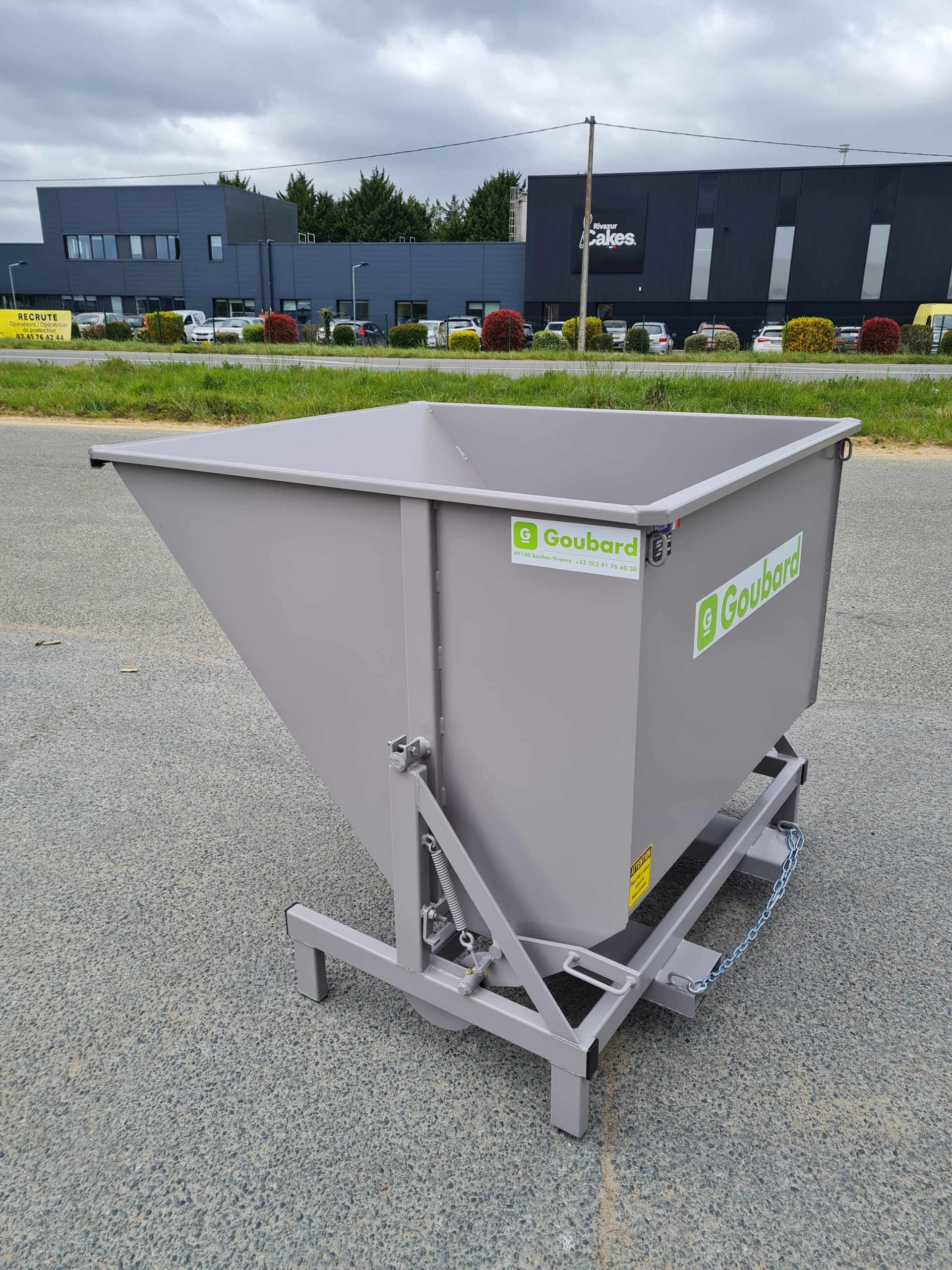

- Pedestal-mounted models can be used with pallet trucks (under fork sleeves)
- Castor-mounted models (forward movement) have 3 Ø125 mm nylon castors (2 fixed + 1 pivoting)
- Safety chain included
- Options on request
