Tipping skips

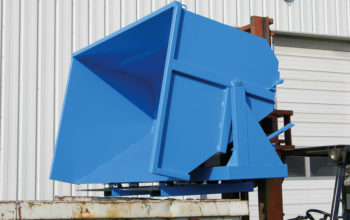

Auto tipping skip for heavy products
GIR
GIR
Intense use.
Ideal for scrap, waste from demolition, block hones...
Strong impact resistance.
Ideal for scrap, waste from demolition, block hones...
Strong impact resistance.
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
| capacity | load | CASTORS | movement | weight | rEf. | |||||||
| litres | kg | Ø | A | B | C | I | D | E | F | kg | painted | |
| 80 series – Bin height 800 mm | ||||||||||||
| 550 | 2500 | – | – | 1250 | 1200 | 1000 | 750 | 1250 | 1080 | 740 | 210 | IRP05000 |
| 550 | 2400 | 160 F | Fwd. | 1280 | 1200 | 1000 | 750 | 1295 | 1125 | 310 | 230 | IRP05162 |
| 750 | 2500 | – | – | 1250 | 1200 | 1250 | 1000 | 1250 | 1080 | 740 | 235 | IRP08000 |
| 750 | 2400 | 160 F | Fwd. | 1280 | 1200 | 1250 | 1000 | 1295 | 1125 | 560 | 255 | IRP08162 |
| 950 | 3000 | – | – | 1250 | 1200 | 1500 | 1250 | 1250 | 1080 | 900 | 285 | IRP10000 |
| 950 | 2400 | 160 F | Lat. | 1280 | 1200 | 1500 | 1250 | 1295 | 1125 | 810 | 305 | IRP10162 |
| 1150 | 3000 | – | – | 1250 | 1200 | 1750 | 1500 | 1250 | 1080 | 900 | 320 | IRP12000 |
| 1150 | 2400 | 160 F | Lat. | 1280 | 1200 | 1750 | 1500 | 1295 | 1125 | 900 | 340 | IRP12162 |
| Dimensions in mm for basic model (for guidance only). | ||||||||||||
| Lat. : Lateral movement – Fwd. : Forward movement | ||||||||||||
Can not find the right model for you? We adapt!
Product features
- Capacity : 550 to 1150 litres
- Fork heel grip (optimizes offset)
- Bin : 4 mm sheet metal with stiffeners
- Rigid tubular chassis 100 x 50 x 4 mm
- Ø35 mm pivoting axis has bearings and grease nipples
- Rubber bumpers dampen end of tipping process
- Lever for manual tipping
- Fork sleeves aperture : 170 x 70 mm and spacing F can be modified on request
- Pedestal-mounted models can be used with pallet trucks (between fork sleeves)
- Castor-mounted models have 2 fixed+ 2 pivoting castors and a handrail
- Safety chain included
- Options on request
