ACCESSORIES
Adjustable lifting jib
CR-F
T
T
CR-F
T
T
Capacities and dimensions
Glossary :
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
A : overall depth
B : interior depth
C : interior depth
I : interior width
D : overall height
D1 : interior height
E : maximum loading height
K : overall height (when emptying)
F : fork sleeves spacing
| B1 | B2 | B3 | C | D | F | Fork sleeves INs. | weight KG | painted REF. |
| 395 | 1960 | 3400 | 1060 | 635 | 800 | 170 x 70 | 216 | CRP3000 |
| Maximum load in kg | ||||||||
| On 1 hook | Evenly distributed across 2 hooks | |||||||
| Position 1 | Position2 | Position3 | Position 1 and 2 | Position 1 and 3 | ||||
| 3000 | 2000 | 1000 | 4000 | 2000 | ||||
| Dimensions in mm for basic model (for guidance only). | ||||||||
Product features

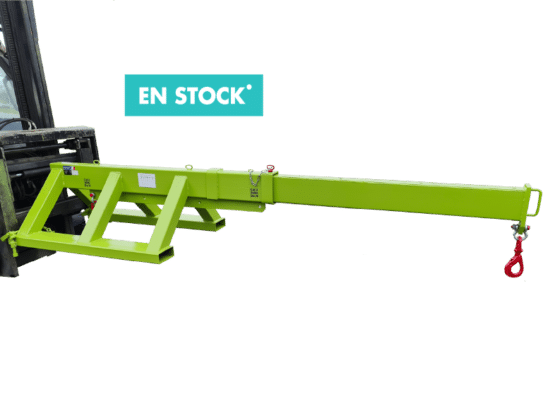

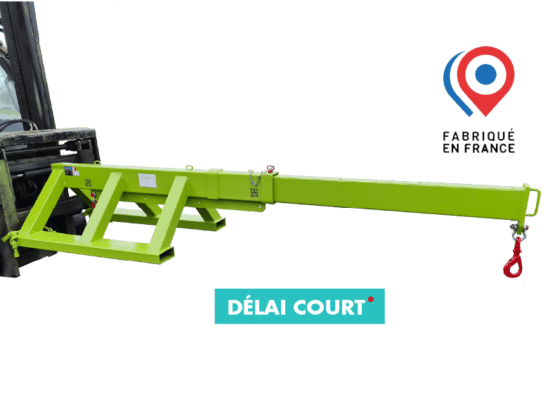

ADJUSTABLE LIFTING JIB
Réf. CRP30000
- Adjustable jib : 1960 to 3400 mm
- Maximum load : 1000 to 4000 kg (see table for details)
- Check forklift capacity and suitability before use
